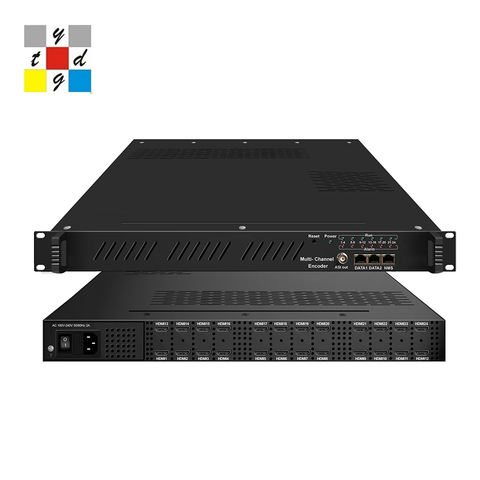

hd iptv modulator 4/8/16/24 way channel 10g encoder
Short Description:
| Video | |
| Encoding | |
| HEVC/ H.265 , MPEG 4 AVC/H.264 | |
| Interface | |
| 2/4/8/16/24 HDMI input | |
| Resolution | |
| 1920*1080_60P,1920*1080_50P;1920*1080_59.94P,1280*720_60p,1280*720_59.941280*720_50P | |
| Chroma | |
| 4:2:0 | |
| Bitrate | |
| 1Mbps~15Mbps | |
| Rate Control | |
| CBR/VBR | |
| GOP Structure | |
| IP | |
| Audio | |
| Encoding Format | |
| MPEG-1 Layer 2,LC-AAC, HE-AAC, HE-AAC V2;AC3 Pass-through | |
| Sample rate | |
| 32KHz,44.1KHz,48KHz | |
| Bit-rate | |
| 48~384Kbps | 4 |
| Bitrate | |
| 1Mbps~15Mbps | ETR289, ETSI 101 197, ETSI 103 197 |
| Stream output | |
| IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoderboard) | |
| Local/remote connection | |
| System function | |
| Network management(WEB) | |
| Chinese and English language | |
| Ethernet software upgrade | |
| Miscellaneous | |
| Dimension (W×L×H) | |
| 482mm×328mm×44mm | |
| Environment | |
| 0~45℃(work);-20~80℃(Storage) | |
| Power requirements | |
| AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
