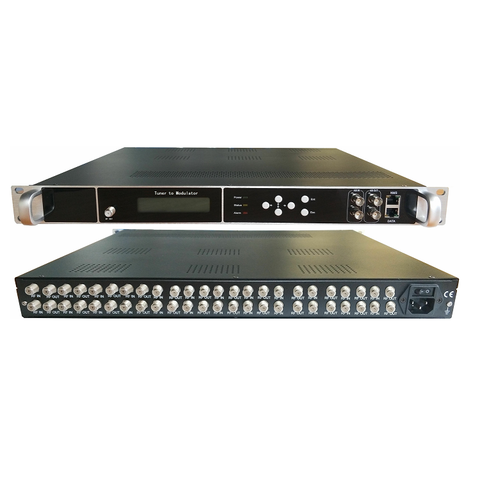

Yantai Yatai 8/16/20/24 Tuner to rf and ip gateway 2 ASI DVB S2 DVBC ISDBT ATSC digital rf tv modulator catv digital
Short Description:
| input | 4/8/12/16/20/24 tuner;and the tuner supports (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DMBT) |
| output | 4RF/8RF output(DVB-C/DVB-T/ATSC/ISDBT/DMBT) |
| Multiplexing | |
| Maximum PID Remapping | 180 output pids per channel |
| Function | PID remapping ( automatically or manually) |
| Modulator | |
| DVB-T | |
| RF number | 4/8 DVB-T |
| Standard | EN300744 |
| FFT mode | 2K |
| bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| MER | ≥42 dB |
| RF frequency | 50~960MHz, 1KHz step |
| RFoutput level | -34~ -10 dBm, 0.1db step |
| DVB-C | |
| RF number | 4/8 RF output |
| Standard | EN300 429/ITU-T J.83A/B/C |
| MER | ≥40db |
| RF frequency | 50~960MHz, 1KHz step |
| RFoutput level | -34~-10dBm , 0.1dBm step |
| Symbol Rate | 5.0Msps~7.0Msps,1ksps stepd |
| J.83A | J.83B/J.83C |
| Constellation | |
| 16/32/64/128/256QAM | 64/256 QAM |
| Bandwidth | |
| 8M | 6M |
| ATSC | |
| RF number | 4/8 RF output |
| Standard | ATSC A/53 |
| Bandwidth | 6M |
| Constellation | 8VSB |
| FEC | RS(208 188)+Trellis |
| MER | ≥40dB |
| RF frequency | 50~960MHz, 1KHz step |
| RFoutput level | -34~-10dBm , 0.1dBm step |
| ISDBT | |
| RF number | 4/8 RF output |
| Standard | ARIB STD-B31 |
| Bandwidth | 6M |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Transmission Mode | 2K |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| MER | ≥40dB |
| RF frequency | 50~960MHz, 1KHz step |
| RFoutput level | -34~-10dBm , 0.1dBm step |
| System function | Network management(WEB) |
| Miscellaneous | |
| Dimension(W×L×H) | 550mm×515mm×140mm |
| weight | 6kg |
| Environment | 0~45℃(work);-20~80℃(storage) |
| Power requirements | AC100~240V,50/60Hz |
