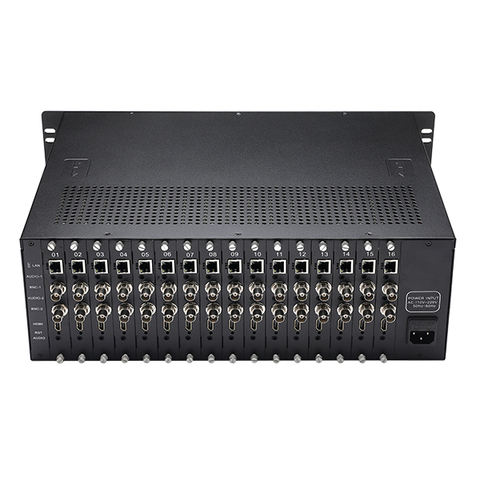

48 Channels HD and Analog IPTV Converter 32 Channel IP Video Encoder
Short Description:
| Video | Video compression: H.264/H.265 High Profile Level 4.0 Video inputs: 16*HD-MI Resolution: 1920*1080_60P, 1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720_50P Bit-rate: 0.8 ~ 12Mbps, CBR/VBR Video pre-processing: De-interlacing, Noise reduction, Sharpen |
| Audio | Audio compression: AAC, MP3 Sampling rate: Adaptive, output sample rate optional Sampling accuracy: 24-bit Bit Rate: 32K,44.1K,48K,64K,96K,128K,160K,192K Encoding bit rate: 64 ~ 384Kbps |
| IP output | Transport protocol:TS over IP output,HTTP/RTMP/RTSP/HTTP/UDP protocol |
| System | Program stream: HTTP,UDP,RTSP,RTMP,ONVIF Configuration Interface: Web operation Upgraded: Can be via network for software upgraded. Connector: RJ45, 1000M Ethernet interface. |
| Physical and power | Voltage: AC220V±10% 50/60 Hz Consumption: 80W for 3 U Operating temperature: -20~80°C Dimensions: 484mm(W)*365mm(D)*148mm(H) Weight: 8KG/PC |
