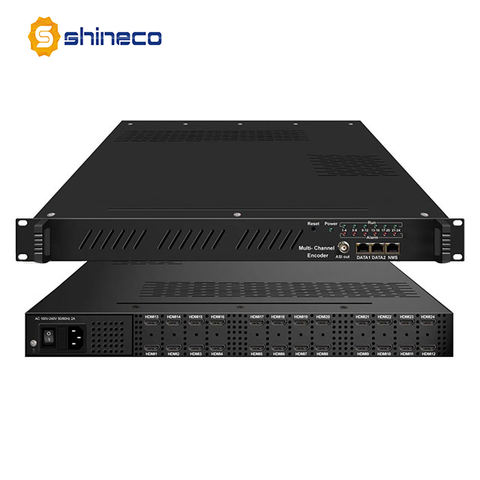

Digital UDP Multicast HDMI to H.264 IP Encoder
Short Description:
| Input | 24*HD-MI input |
| Video | |
| Resolution | 1920×1080_60P, 1920×1080_50P,1920×1080_60i, 1920×1080_50i,1280×720_60P, 1280×720_50P,1720×576_50i, 720×480_60i |
| Encoding | MPEG-4 AVC/H.264 |
| Bit-rate | 0.8Mbps~19Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, Noise reduction, Sharpening |
| Audio | |
| Encoding | MPEG-1 Layer 2(HE-AAC V2, LC-AAC Optional), AC3 pass through |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Bit-rate | 64kbps~384kbps each channel |
| Multiplexing | Multiplex with local 24 channels TS |
| Stream output | 1-way ASI output, BNC interface |
| System function | LCD/keyboard, network management(WEB)Chinese and English language |
| Miscellaneous | |
| Dimension(W×L×H) | 482mm×410mm×44mm |
| Approx weight | 8kg |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
| Power consumption | 20W |
