Product model
|

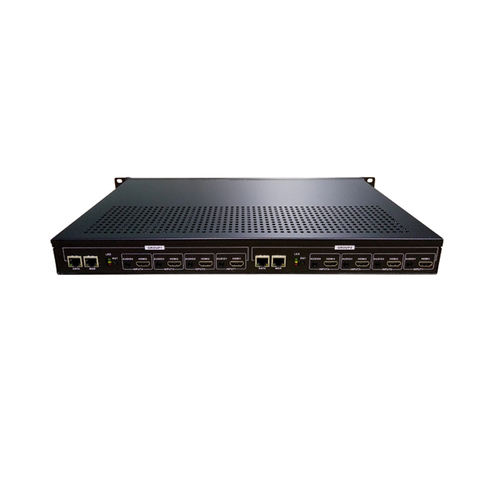

1/4/8/16-channel HDMI HD encoder
|
|
Input
|
16-channel HDMI input, 16 channel CVBS input, 16 channel 3.5 audio input
|
|
Output
|
16 channel IP signal output
|
|
Video
|
|
Input resolution
|
1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 And other conventional resolution
|
|
Coding standard
|
H.264
|
|
Coding level
|
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
|
Encoded size
|
640*360~1920*1080(Can customize)
|
|
Video bit rate
|
Rate control:CBR/VBR 16KBIT/S~12MBIT/S
|
|
Video frame rate
|
30/60
|
|
OSD
|
Character
|
|
Audio
|
|
Input selection
|
16 channel embedded audio hdmi, 16 channel 3.5MM independent audio
|
|
Audio coding
|
AAC/MP3
|
|
Audio bit rate
|
64Kb/s~384Kb/s
|
|
Sampling rate
|
32000,44100 48000etc
|
|
IP
output
|
16 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
|
|
System
|
|
Network protocol
|
Supports HTTP, RTSP, RTMP, UDP, HLSmulticast, unicast
|
|
Configuration management
|
Support IE configuration, remote upgrade
|
|
The common use
|
|
Power supply
|
AC 110~220V
|
|
power consumption
|
<100W
|
|
Size
|
484mm x 365mm x 148mm(length x width x height)
|
|
Operating temperature
|
-20℃+ 60℃
|
|
Working humidity
|
<90%,Non-condensing
|
|
Weight
|
7 KG
|
