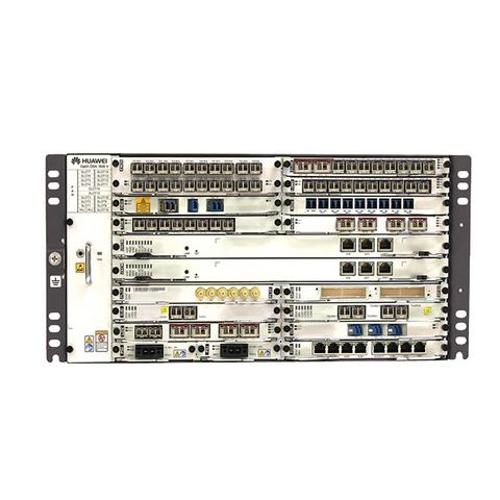

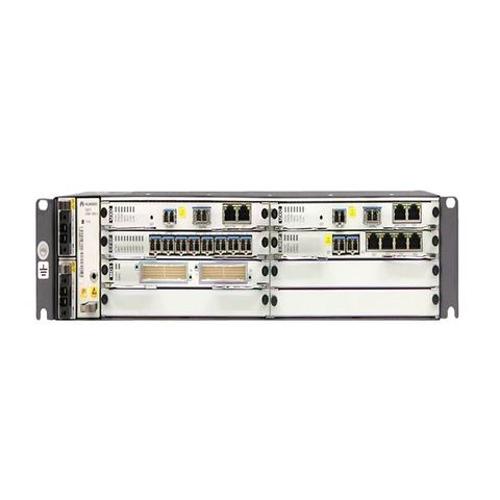

Huawei Optical Transmitter and Receiver OSN 1800V DWDM
Short Description:
| Dimensions (H x D x W) | 221 mm x 224 mm x 442 mm (excluding handle) |
| Number of slots for service boards | DC-powered chassis: 15 AC-powered chassis: 12 |
| Optical switching capability | 1 to 9-degree reconfigurable optical add/drop multiplexer (ROADM) |
| Product capacity | |
| OTN | 700 Gbit/s |
| Packet service | 700 Gbit/s |
| TDM | Higher order: 280 Gbit/s; lower order: 40 Gbit/s |
| Maximum number of wavelengths | |
| DWDM | 80 wavelengths |
| CWDM | 8 wavelengths |
| Center Wavelength range | DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (S+C+L Band, ITU-T G.694.2) |
| Maximum rate per channel | 200 Gbit/s |
| Service types | SDH/SONET service, PDH service, OTN service, Ethernet service, CPRI service, OBSAI service, SAN service, video service, and others |
| Line rate | 2.5 Gbit/s, 10 Gbit/s, 50Gbit/s, 100 Gbit/s, 200 Gbit/s |
| Pluggable optical/electrical module | Optical module: SFP/eSFP, XFP, SFP+, QSFP+, TXFP, CFP, CFP2, QSFP28 Electrical module: GE SFP, FE SFP, STM-1 SFP |
| Topology | Point-to-point, chain, star, ring, ring-with-chain, intersecting rings, tangent rings , and mesh networking |
| Applications | Pure packet networks, pure OTN networks, pure TDM networks, MS-OTN networks (OTN+Packet+TDM), hybrid networks (Packet+TDM), OTN+Packet networks, and OTN+TDM networks |
| Redundancy and Protection | |
| Network level protection (OTN) | Client 1+1 protection, intra-board 1+1 protection, ODUk SNCP, optical line protection, tributary SNCP, and LPT |
| Network level protection (packet) | Tunnel APS, PW APS/FPS, MC-PW APS, MC-LAG, LPT, LAG, ERPS, MRPS, LMSP, packet SNCP |
| Network level protection (TDM) | SDH protection: SNCP, linear MSP, ring MSP, TPS EoS protection: LAG, DLAG, LCAS, LPT, and STP/RSTP |
| Equipment level protection | Control, cross-connect, and clock integrated board redundancy Power supply redundancy Fan redundancy |
| Optical power management | ALS, AGC, OPA, IPA |
| Maintenance | |
| MPLS-TP OAM | Supports CC, RDI, AIS, LB, LT, one-way LM, two-way DM, LCK, TST, and CSF. |
| ETH OAM (packet) | Ethernet service OAM: supports continuity check (CC), loopback (LB), linktrace (LT), alarm indication signal (AIS), one-way loss measurement (LM), two-way delay measurement (DM), and remote defect indication (RDI). Ethernet port OAM: supports OAM auto-discovery, link performance monitoring, fault locating, remote loopback, and self-loop detection. |
| ETH OAM (EoS) | Ethernet service OAM: supports CC, LB, LT, AIS, OAM_Ping, and Performance detection. Ethernet port OAM: supports OAM auto-discovery, link performance monitoring, fault locating, remote loopback, and self-loop detection. |
| Port mirroring (EoS) | Supports port mirroring that enables service analysis and fault diagnosis without affecting services. Supports mirroring at local ports. |
| Port mirroring (packet) | Supports port mirroring that enables service analysis and fault diagnosis without affecting services. Supports mirroring at local ports. Supports mirroring in the ingress direction of UNI ports. |
| Port traffic mirroring (packet and EoS) | Supports port traffic mirroring that enables service analysis and fault diagnosis without affecting services. Supports mirroring at local ports. Supports mirroring in the ingress direction. |
| Loopback | Supports loopback that used to determine whether the board where the loopback is performed is faulty. |
| PRBS | Supports PRBS that used to analyze whether service paths are faulty. |
| LLDP | Supports LLDP that used to diagnose faults quickly. |
| Easy O&M | Optical Doctor System, Fiber Doctor System |
| Synchronization | Physical Clocks (OTN & Packet & SDH) IEEE 1588v2 (OTN & Packet) ITU-T G.8275.1/G.8273.2 (OTN & Packet) |
| DCN | |
| Outband DCN | Supports 225 outband DCN channels, which can be electric supervisory channels (ESCs) or optical supervisory channels (OSCs). |
| Inband DCN | Supports 64 inband DCN channels. Channel bandwidth are configurable. |
| ASON | OTN network: Electrical-Layer ASON (only Z-series cross-connections support). |
| TP-Assist | Service configuration: supports end-to-end service configuration and automatic deployment of alarm management with service deployment. Service commissioning: supports one-click service connectivity tests, meter-free automatic tests, and one-click service performance tests. |
| Power supply | DC power input Standard working voltage: -48V DC/-60V DC Working voltage range: -48V DC: -40V to -57.6V -60V DC: -48V to -72V AC power input Standard working voltage: 110V AC/220V AC Working voltage range: TNF5APIU: 90V to 264V TNF6APIU: 90V to 290V |
| Running environment | |
| Chassis temperature | Long-term running: -5°C to +50°C Short-terma running: -10°C to +55°C |
| Chassis relative humidity | Long-term running: 5% to 85% Short-term running: 5% to 95% |
