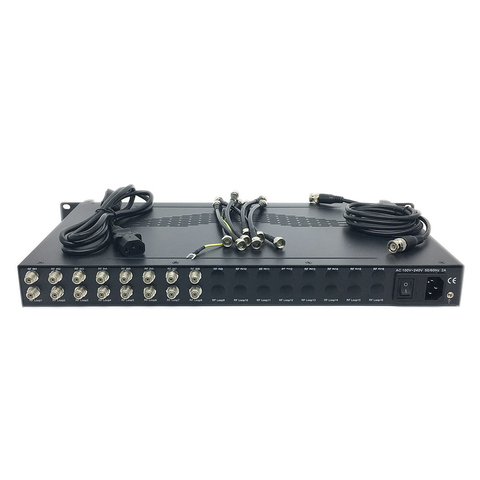

Input
|
Optional 1:16 tuners input +2 ASI input---SPTS output
Optional 2:14 tuners input +2 ASI input --- MPTS output
Optional 3:16 tuners input --- MPTS output
|
|
Tuner Section
|
|
|
|
DVB-C
|
|
Standard
|
J.83A(DVB-C), J.83B, J.83C
|
|
Frequency In
|
30 MHz~1000 MHz
|
|
Constellation
|
16/32/64/128/256 QAM
|
|
DVB-T/T2
|
|
Frequency In
|
30MHz ~999.999 MHz
|
|
Bandwidth
|
6/7/8 M bandwidth
|
|
(Version 1)
|
|
DVB-S
|
|
Input Frequency
|
950-2150MHz
|
|
Symbol rate
|
1~45 Msps
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Constellation
|
QPSK
|
|
DVB-S2
|
|
Frequency In
|
950-2150MHz
|
|
Symbol rate
|
1~45 Msps
|
|
FEC
|
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
|
|
Constellation
|
QPSK, 8PSK
|
|
(Version 2)
|
|
DVB-S
|
|
Frequency In
|
950-2150MHz
|
|
Symbol rate
|
0.5~45Msps
|
|
Signal Strength
|
- 65- -25dBm
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Constellation
|
QPSK
|
|
Max input bitrate
|
≤125 Mbps
|
|
DVB-S2
|
|
Frequency In
|
950-2150MHz
|
|
Symbol rate
|
QPSK/8PSK /16APSK :0.5~45 Msps
32APSK: 0.5~34Msps;
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
|
|
Constellation
|
QPSK, 8PSK, 16APSK, 32APSK
|
|
Max input bitrate
|
≤125 Mbps
|
|
DVB-S2X
|
|
Frequency In
|
950-2150MHz
|
|
Symbol rate
|
QPSK/8PSK /16APSK :0.5~45 Msps
8APSK: 0.5~40Msps
32APSK: 0.5~34Msps
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9
|
|
Constellation
|
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
|
|
Max input bitrate
|
≤125 Mbps
|
|
|
|
ISDB-T
|
|
Frequency In
|
30-1000MHz
|
|
ATSC
|
|
Frequency In
|
54MHz~858MHz
|
|
Bandwidth
|
6M bandwidth
|
|
BISS Descrambling
|
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
|
|
Output
|
512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different) , Unicast and Multicast
|
|
Syatem
|
Web based management
|
|
Miscellaneous
|
|
Dimension
|
482mm×410mm×44mm (W×L×H)
|
|
Approx weight
|
3.6kg
|
|
Environment
|
0~45℃(work);-20~80℃(Storage)
|
|
Power requirements
|
100~240VAC, 50/60Hz
|
|
Power consumption
|
20W
|
