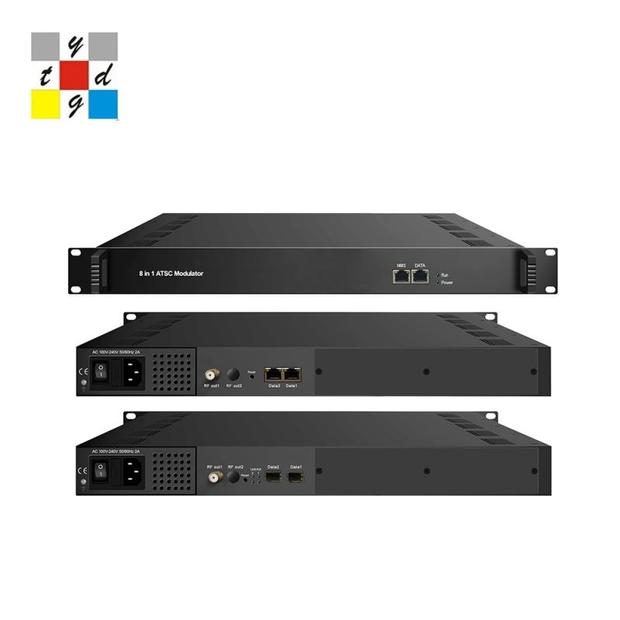

Mux scarmbing Iptv Ptv Qam Modulator Catv Qam Modulator
Short Description:
| Input | 8 Tuner and 6 ASI input |
| Multiplexing | |
| Maximum PID Remapping | 128per input channel |
| Function | PID remapping (automatically or manually) |
| Scrambling | |
| Maximum simulcrypt CA | 4 |
| Standard | ETSI 101 197, ETSI 103 197 |
| Connection | Local/remote connection |
| Modulation | |
| QAM Channel | 4 |
| Standard | EN300 429/ITU-T J.83A/B/C |
| Symbol Rate | 5.0Msps~9.0Msps, 1ksps stepping |
| Constellation | 16/32/64/128/256QAM |
| FEC | RS(204, 188) |
| RF Output | |
| Connector | F Type, 75Ω impedance |
| RF Range | 30~960MHz, 1kHz stepping |
| Output Attenuation | -30dBm~-10dBm (per QAM carrier), 0.1dB Stepping |
| MER | ≥40db |
| ACLR (Adjacent channel leakage ratio) | -55dBC |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web NMS |
| Stream Out | IP (4*MPTS over UDP) out (RJ45, 1000M) |
| Language | English and Chinese |
| Software Upgrading | Web and USB |
| General | |
| Dimension(W*D*H) | 482mm×300mm×44.5mm |
| Weight | 3.7kg |
| Temperature | 0~45℃(Operation) ; -20~80℃(Storage) |
| Power | AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
| Consumption | 25W |
