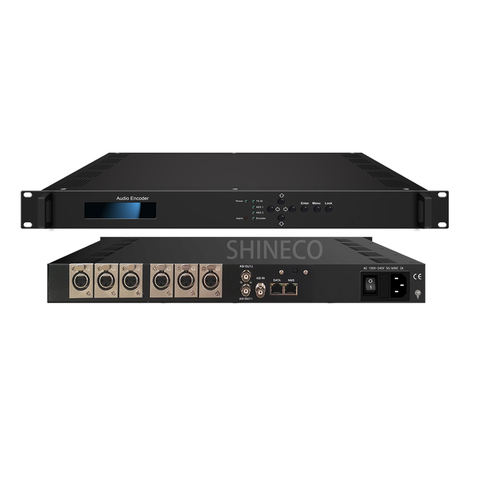

Daul Audio Channel XLR AES EBU MPEG1 AAC To ASI IP Encoder
Short Description:
| Input | Analog balanced audio, XLR interfaces |
| Encoding | |
| Encoding | MPEG1 Layer 2, AAC |
| Sample rate | 48KHz |
| Sample accuracy | 16bit |
| Bit-rate | 64/96/128/192/256/320/384kbps |
| Sound Track | left, right, stereo (AAC is only for stereo) |
| Multiplexing | |
| Maximum PID Number | 64 |
| Output | 2 independent ASI outputs, BNC interface (Mirror out of MPTS/SPTS1/SPTS2) |
| System function | LCD/keyboard, Web GUI management Chinese and English language |
| General | |
| Dimensions (W×D×H) | 482mm×350mm×44mm |
| Temperature range | 0~45℃(operation), -20~80℃(storage) |
| Power Requirements | AC 110V±10%,50/60Hz AC 220V±10%,50/60Hz |
| Power Consumption | <15W |
| Weight | About 3.2kg |
