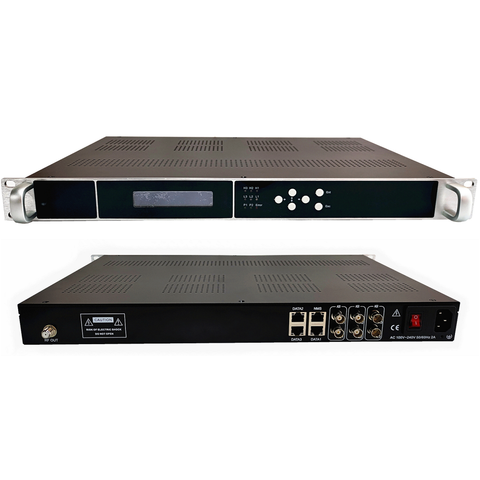

8RF Output IP Modulator Digital IPTV to ISDBT DVBT DVBC Radio & TV Broadcasting Equipment
Short Description:
| Modulation | |
| Standard | ARIB STD-B31 |
| FFT mode | 2K,4K,8K |
| Bandwidth | 6M |
| Constellation | QPSK, 16QAM, 64QAM |
| RF out | 16 Channels ISDB, |
| RF frequency | 96~864MHz,1kHz step |
| RF output level | -35dBm~-5dBm |
| MER | ≥40db |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| IP Input | 3ch 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast, 6ch ASI input. |
| System | LCD/Keyboard operating and web-based NMS support |
| General | |
| Dimension (W*D*H) | 440mm×300mm×45mm (Box)482mm×340mm×45mm (Max)525mm×375mm×85mm (Pack) |
| Temperature | 0~40℃(work);-20~80℃(storage) |
| Power supply | AC 110V±10%,50/60Hz AC 220V±10%,50/60Hz |
