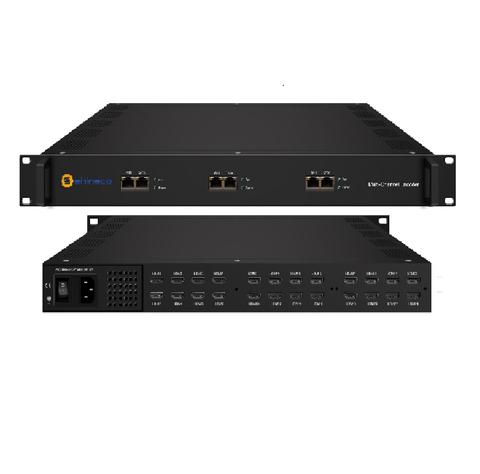

IPTV System 2/4/8/16/24 HDMI Channel H.265 UDP/SRT/HTTP/HLS IP Network Encoder
Short Description:
| Input | 2/4/8/16/24 HDMI inputs |
| Video | |
| Resolution | 1920*1080_60P, 1920*1080_50P; 1920*1080_59.94P, 1280*720_60p, 1280*720_59.94, 1280*720_50P |
| Encoding | H.264/H.265 |
| Bit-rate | 1~15Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP |
| Audio | |
| Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through |
| Sampling rate | 32KHz,44.1KHz,48KHz |
| Chroma | 4:2:0 |
| Audio Gain | 0-255 Adjustable |
| MPEG-1 Layer 2Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps |
| Stream output | IP out over UDP (Unicast/Multicast), SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board) |
| System function | Network management(WEB) |
| Miscellaneous | |
| Dimension(W×L×H) | 482mm×328mm×44mm |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
