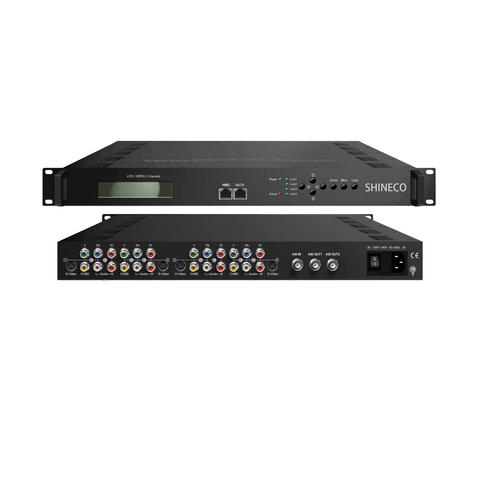

4 IN 1 S-video CVBS YPbPr MPEG2 UDP SD Unicast Multicast Encoder
Short Description:
| Input | 4xS-Video/YPbPr/CVBS (RCA) |
| Encoding | |
| Video | |
| Format | MPEG-2 MP@ML (4:2:0) |
| Interface | S-Video/YPbPr/CVBS*4(RCA) |
| Bitrate | 1-19.5Mbps |
| Resolution | 720*480_60i, 720*576_50i |
| Rate mode | VBR/CBR |
| Chroma | 4:2:0 |
| Aspect | 16:9,4:3, 1:1, 2.21:1 |
| Audio | |
| Format | MPEG1 Layer II |
| Interface | 4*Stereo or 8*mono (RCA) |
| Sample rate | 48KHz |
| Bitrate | 64kbps,96kbps,128kbps,192kbps,256kbps,320kbps |
| Stream output | 1*ASI |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web NMS Management |
| Language | English |
| General | |
| Dimension (W*D*H) | 482mm×300mm×44.5mm |
| Weight | 3.5kg |
| Temperature | 0~45℃(Operation) ; -20~80℃(Storage) |
| Power | AC 100V~240V |
| Consumption | 25W |
