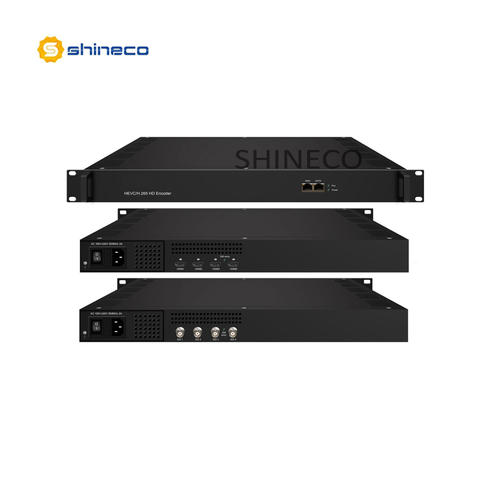

High Quality IPTV System 4/8/12 HDMI H.264 HEVC H.265 Video Audio IP UDP/RTP/RTSP Encoder
Short Description:
| Input | 4/8/12×HD-SDI or HDMI (1.4) inputs for option, HDCP 1.4 |
| Video Encoding | |
| Encoding Format | HEVC/ H.265 , MPEG 4 AVC/H.264 |
| Resolution (HDMI V1, and SDI) | |
| Input | Output |
| HEVC/H.265 | MPEG-4 AVC/H.264 |
| 4*1080P-50 | |
| 4*1080P-50 | 4*1080P-25 2*1080P-50 |
| 4*1080P-60/59.94 | |
| 4*1080P-60, 4*1080P-59.94 | 4*1080P-30 4*1080P-29.97 2*1080P-60 2*1080P-59.94 |
| 4*1080I-50 | |
| 4*1080P-50, 4*1080P-25 | 4*1080I-50 4*1080P-25 2*1080P-50 |
| 4*1080I-60/59.94 | |
| 4*1080P-60, 4*1080P-30 | 4*1080I-60 4*1080P-30 2*1080P-60 |
| 4*720P-50 | |
| 4*720P-50 | 4*720P-50 |
| 4*720P-60/59.94 | |
| 4*720P-60, 4*720P-59.94 | 4*720P-60 4*720P-59.94 |
| Resolution (HDMI V2) | 3840×2160_30P, 3840×2160_29.97P (Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264 ) 1920×1080_60P,1920×1080_59.94P,1920×1080_50P, (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) 1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265) |
| Chroma | 4:2:0 |
| Bitrate | 0.5Mbps~20Mbps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP, IPPP |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Audio Encoding | |
| Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough |
| Sampling rate | 48KHz |
| Bit-rate (each channel) | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC) 24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) |
| Audio Gain | 0~255 |
| Stream output | IP (1 MPTS and maximum 4 SPTS) output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPv4, IPv6 output IP null packet filter |
| System | Web based management |
| Miscellaneous | |
| Dimension (W× L× H) | 482mm×328mm×44mm |
| Approx weight | 5kg |
| Temperature | 0~45℃(work), -20~80℃(Storage) |
| Power | AC 100V-220V±10%, 50/60Hz |
