4K FPS Video HD 3 Sim Card H.264 H.265 Bonding Encoder Support HTTP, RTSP, RTMP, UDP, Unicast, multicast, HLS, RTP

Short Description:


Product Detail

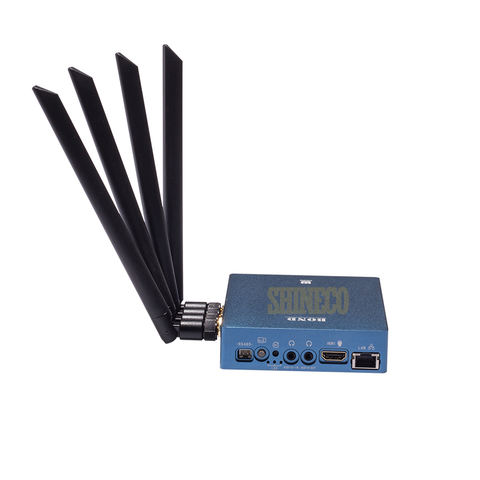

Model SNK3210
Input 1* HDMI, 1* 3.5MM audio Jack
Output H.264/ H.265 TS stream
Video
Input Resolution 3840*2160 and below
Encoding H.265 main profile H.264 BASELINE PROFILE/  H.264 MAIN PROFILE/  H.264 HIGH PROFILE
Encoded size Up to 3840* 2160
Bitrate 200 kb/s~512000kb/s
Frame 3840-2160-30 fps, 1920*1080-60 FPS
OSD Text, image
Audio
Input 1* HDMI embedded audio, 1* 3.5 mm Audio Jack (active audio)
Output 1* 3.5 audio Jack
Encoding AAC/ MP3/ G.711
Bitrate 64Kb/s~384Kb/s
Sampling 32000, 44100, 48000 etc
Internet RJ45 1000M/100M adaptive network,  4G (3* Sim),  WIFI
System
Network protocol HTTP, RTSP, RTMP, UDP, Unicast, multicast, HLS, RTP, P-P, ONVIF
Configuration Linux/ Windows/ Mac based IE browser, APP
RS485 PELCO-D, PELCO-P
Storage TF card (max 128G, SanDisk CLASS10 64G TF card)
Others
Power 12V~2A
Consumption 8W
Size 102mm x 132mm x 28mm
Battery 7.4V 4500MAH Li-polymer
temperature -20℃+ 60℃
Humidity <90%, non-condensation
Weight 0.4KG

xxxxxxx.
