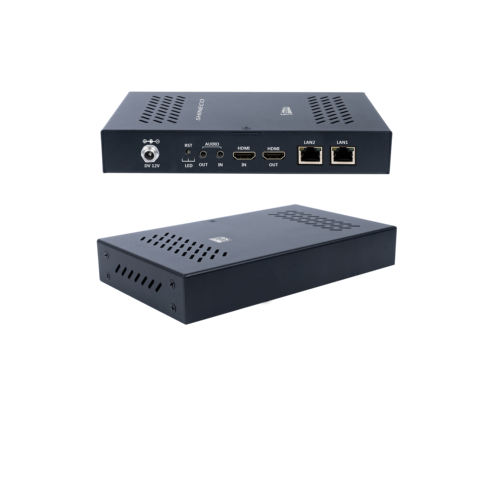

Product model
|
4K Encoder
|
|
Input
|
1 HDMI input up to 16
|
|
Output
|
2 channel IP signal output,1 HDMI output,1 audio output
|
|
Video
|
|
Input resolution
|
4096*2160/3840*2160/2048*1152/1920x1080p/1280x720p etc
|
|
Coding standard
|
H.264/H.265
|
|
Coding level
|
H.265 MP LEVEL 5.0
H.264 HP/MP/BP LEVEL 5.1
|
|
Encoded size
|
640*360~3840*2160( customized)
|
|
Video bit rate
|
Rate control: CBR/VBR 16KBIT/S~200MBIT/S
|
|
Video frame rate
|
4K 30fps,1080P 60fps
|
|
OSD
|
Text ,images
|
|
Audio
|
|
Input selection
|
HDMI video&audio input Support audio gain
|
|
Audio coding
|
AAC/MP3/G711
|
|
Audio bit rate
|
64Kb/s~384Kb/s
|
|
Sampling rate
|
44100,48000 etc
|
|
IP
output
|
1 RJ45 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
|
|
System
|
|
Network protocol
|
Supports HTTP, RTSP, RTMP, ONVIF, UDP multicast, unicast
|
|
Configuration management
|
Support IE configuration, remote upgrade
|
|
The common use
|
|
Power supply
|
12V 2A
|
|
power consumption
|
5W
|
|
Size
|
110mm * 100mm *40mm(length*width*height)
|
|
Operating temperature
|
-20℃+ 60℃
|
|
Working humidity
|
<90%,Non-condensing
|
|
Weight
|
0.3KG
|
