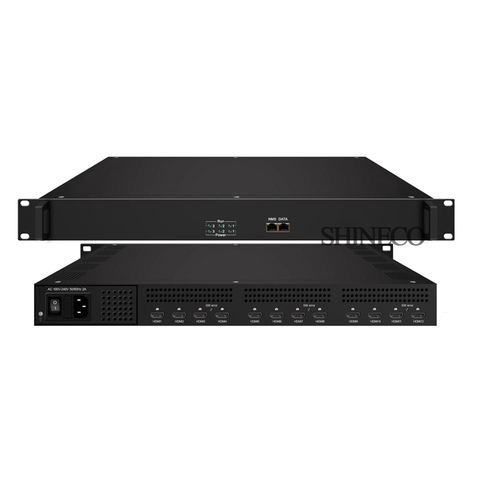

MPEG4 H.264 H265 4K Encoder IPTV H.265 with IBBP
Short Description:
| Input | 12×HDMI input (1.4), HDCP 1.4 |
| VideoEncoding | |
| Encoding Format | HEVC /H.265, MPEG 4 AVC/H.264 |
| Resolution | 3840×2160_30P, 3840×2160_29.97P(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264 )1920×1080_60P,1920×1080_59.94P,1920×1080_50P,(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)1280×720_60P, 1280×720_59.94P, 1280×720_50P(Encoding 4 CHs per module for H.264 and H.265) |
| Chroma | 4:2:0 |
| Bitrate | 0.5Mbps~20Mbps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP, IPPP |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Audio Encoding | |
| Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2 |
| Sampling rate | 48KHz |
| Bit-rate (each channel) | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)24 Kbps~128 Kbps (HE-AAC)18 Kbps~56 Kbps (HE-AAC V2) |
| Audio Gain | 0~255 |
| Stream output | 1 MPTS and maximum 4 SPTS (per module) output over UDP/RTP/RTSP, 1000M/100M Base-T Ethernet interface (unicast/ multicast)IP null packet filter |
| System | Web based management |
| Miscellaneous | |
| Dimension (W× L× H) | 482mm×328mm×44mm |
| Approx weight | 5kg |
| Temperature | 0~45℃(work), -20~80℃(Storage) |
| Power | AC 100V-220V±10%, 50/60Hz |
