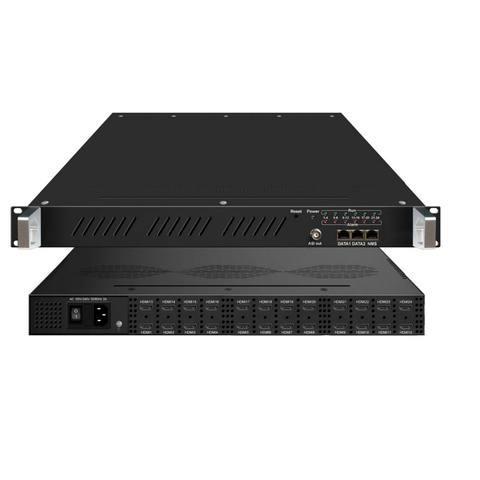

Digital Headend 8-24 Channels HDMI Encoder H.264
Short Description:
| Input | 12 HDMI inputsDATA1(GE port)/DATA2(GE port)/DATA3(FE port),RJ45 |
| Video | |
| Resolution | |
| input | 1920×1080_60i, 1280×720_60i, 1920×1080_50i, 1280×720_50i |
| output | 1920×1080_60i, 1280×720_60i, 1920×1080_50i, 1280×720_50i,720×480_50i,320×240_60i,176×240_60i,176×120_60i,720×576_50i,704×576_50i,640×576_50i,352×288_50i,320×288_50i, 176×288_50i, 176×144_50i |
| Encoding | MPEG-4 AVC/H.264 |
| Bit-rate | 0.8Mbps~19Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) |
| Audio | |
| Encoding | MPEG-1 Layer 2 |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Bit-rate | 32kbps,48kbps ,56kbps,64kbps,80kbps,96kbps,112kbps,128Kbps,160kbps,192kbps,224kbps,256kbps,320kbps,384kbps |
| Multiplexing | |
| Maximum PIDRemapping | 180 input per channel |
| Function | PID remapping ( automatically or manually) |
| Stream output | 128 SPTS IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet interface |
| System function | Network management(WEB) |
| Miscellaneous | |
| Dimension(W×L×H) | 482mm×410mm×44mm |
| Approx weight | 8kg |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
| Power consumption | 70W |
