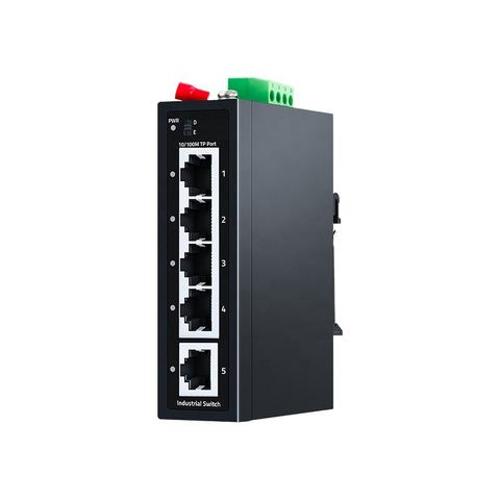

5 Port 100M Industrial Switch,100Mbps DIN35 Rail 100Base-T Network Ethernet Fast Switch IP30 Lightning Protection Plug and Play
Short Description:
| Power | DC (12-55V) |
| Ethernet Port | 5* 10/100Mbps RJ45 port |
| Bandwidth | 1.0 Gbps |
| Packet ForwardingRate | 0.744 Mpps |
| Packet Cache | 448K |
| MAC Address | 1K |
| Jumbo Frame | 1536 bytes |
| Forwarding Mode | Storage and Forward |
| MTBF | 100000 Hours |
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3x (Flow Control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge) |
| Network Medium | 10Base-T : Cat 3, 4, 5 or above UTP/STP(≤100m)100Base-TX : Cat 5 or above UTP/STP(≤100m) |
| Safety Certificate | CE, FCC, RoHS |
| WorkingEnvironment | Working Temperature: -40~75°CStorage Temperature: -40~85°CWorking Humidity :10%~90%,non-condensingStorage Temperature:5%~90%,non-condensingWorking Height: Maximum10,000 feetStorage Height: Maximum 10,000 feet |
| LED Indicator | PWR (Power Indicate),1-5 Green Light(Link & Data) |
| PWR | On: Power onOff: Power off |
| 1-5 Green Light (Link& Data) | On: Link ConnectedFlashing: Data Transmit Off: Link Disconnect |
| Power Voltage | Input Voltage :DC 12-55 VType of input: 4 PIN Industrial Terminal (block V1+V1- V2+ V2-) |
| Packaging List | 1. Industrial Switch:1 PC2. User Manual:1PC3. Certification:1PC4. Pull-arm : 1 PC |
