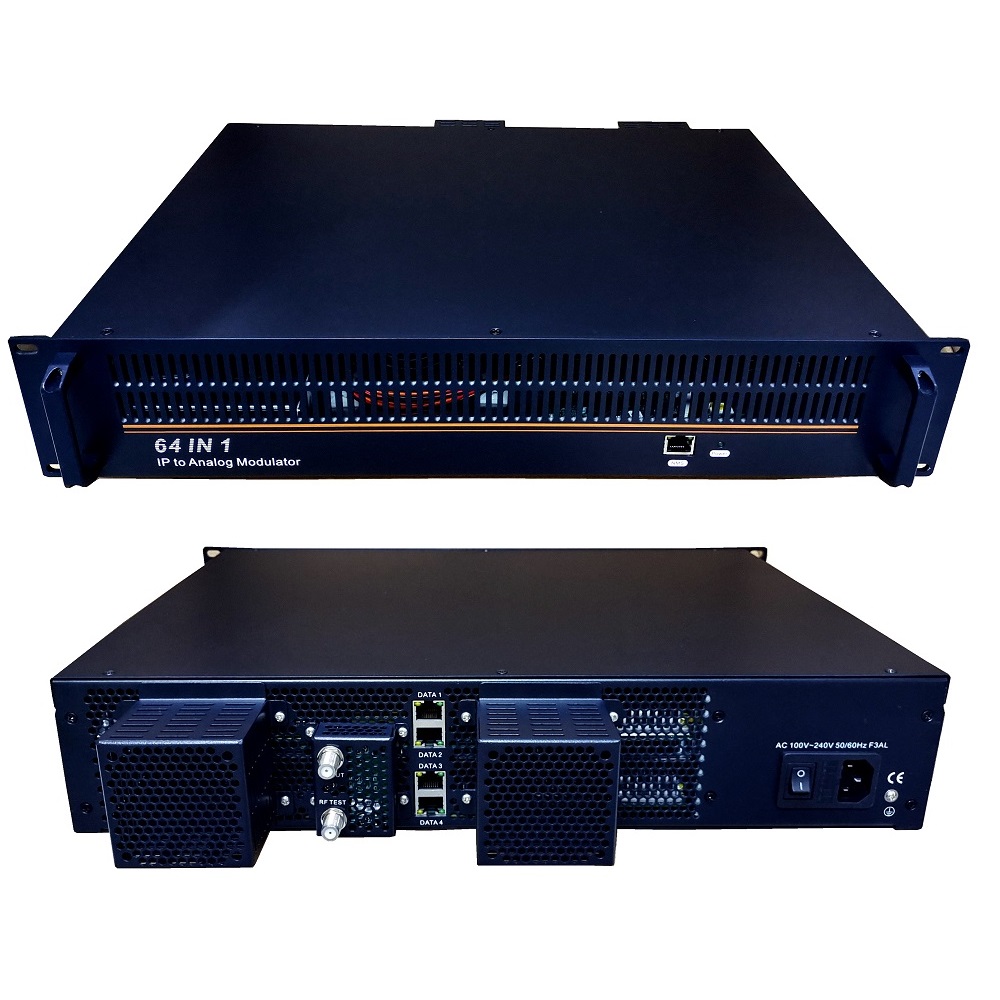

Hot selling 2500C 64 IN 1 NTSC PAL IP to Analog catv modulator
Short Description:
| Input | |
| Interface/rate | 4 GE ports (max 64 IP input) Max 840Mbps for each GE input |
| Stream | UDP, UDP / RTP, 1-7 packets (SPTS/MPTS) |
| Transport Protocol | UDP/RTP, unicast and multicast, IGMP V2/V3 |
| Packet Length | 188 / 204 Bytes |
| Decoding Parameters | |
| Video | HEVC/H.265, H.264/AVC, MPEG-2 |
| Audio | MPEG-1/2 Layer 1/2, (HE-)AAC, AC3 |
| Data | CC, Teletext, Subtitles, DVB Subtitling |
| Resolutions | HEVC/H.265: 1080@60P, 1080@60I, 1080@50P, 1080@50I, 720@60P, 720@50P H.264/AVC: 1080@60I, 1080@50P, 1080@50I, 1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I MPEG2: 1080@60I, 1080@50I, 720@60P, 720@50P, 576@50I, 480@60I |
| Aspect ratio | 4:3 |
| Modulation Parameters | |
| Number of channels | Up to 64 non-adjacent or adjacent carriers output |
| Connectors | 75Ω, F-jack |
| Frequency range | 43.25 – 951.252MHz |
| Output Bandwidth | 400MHz(each 32 carriers) |
| Output level | -5 ~ 2dBm (102 ~ 112dBμV) |
| Return loss | ≥ 14dB |
| Spurious frequency dist. | ≥ 60dB |
| Residual carrier accuracy | 1% |
| TV standard | PAL B/G/D/K/M/N/I, NTSC M, SECAM |
| Video-signal to noise ratio | ≥ 60dB |
| Carrier to noise ratio | ≥ 60dB (when single carrier on) ≥ 55.5dB (when all 64 carriers on) |
| Network Interface | |
| Management | 1 x 100 Base-T Ethernet (RJ 45) |
| Data | 4 x 1000 Base-T Ethernet (RJ 45) |
| Others | |
| Image resolution output | 480i/576i |
| OSD | Logo : JPG, BMP, PNG |
| Output volume adjustment | 0 - 100 % |
| General | |
| Demission | 483mm×330mm×88mm (WxLxH) |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz |
