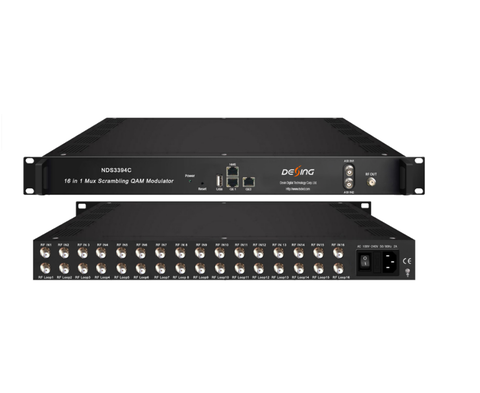

NDS3394C 16 IN 1 MUX Scrambling Qam Modulator 16 DVB-T RF output
Short Description:
| Input | |
| 16 DVB-C (DVB-T/-T2/-S/-S2/-S2X, ATSC, ISDB-T Optional) FTA Tuner | |
| Max 512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1or Data 2 port can input max 512 IP, while front-panel Data port can input max 128 IP | |
| 512 IP input through GE1 over UDP and RTP protocol | |
| TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | |
| 2 ASI input, BNC interface | |
| Max 840Mbps for each GE input | |
| Tuner Section | |
| Multi-mode tuners switchable(New) | |
| DVB-C | |
| Standard | J.83A(DVB-C), J.83B, J.83C |
| Frequency In | 60~890MHz |
| Constellation | 16/32/64/128/256 QAM |
| DVB-T/T2 | |
| Frequency In | 60~890MHz |
| Bandwidth | 6/7/8 M bandwidth |
| ISDB-T | |
| Frequency In | 60~890MHz |
| Version 1 | |
| DVB-S/S2 | |
| Frequency In | 950~2150MHz |
| Symbol rate | QPSK 1~45Mbauds8PSK 1~45Mbauds |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| Version 2(New) | |
| DVB-S | |
| Frequency In | 950~2150MHz |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65~-25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤129 Mbps |
| DVB-S2 | |
| Frequency In | 950~2150MHz |
| Symbol rate | QPSK/8PSK /16APSK: 0.5~45 Msps32APSK: 0.5~40Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK:3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤129 Mbps |
| DVB-S2X | |
| Frequency In | 950-2150MHz |
| Symbol rate | QPSK/8PSK /16APSK: 0.5~45 Msps8APSK/32APSK: 0.5~40Msps |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/208PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/108APSK: 5/9-L, 26/45-L16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/9032APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Max input bitrate | ≤129 Mbps |
| ATSC | |
| Frequency In | 30~1000MHz |
| Bandwidth | 6M |
| Constellation | 8VSB |
