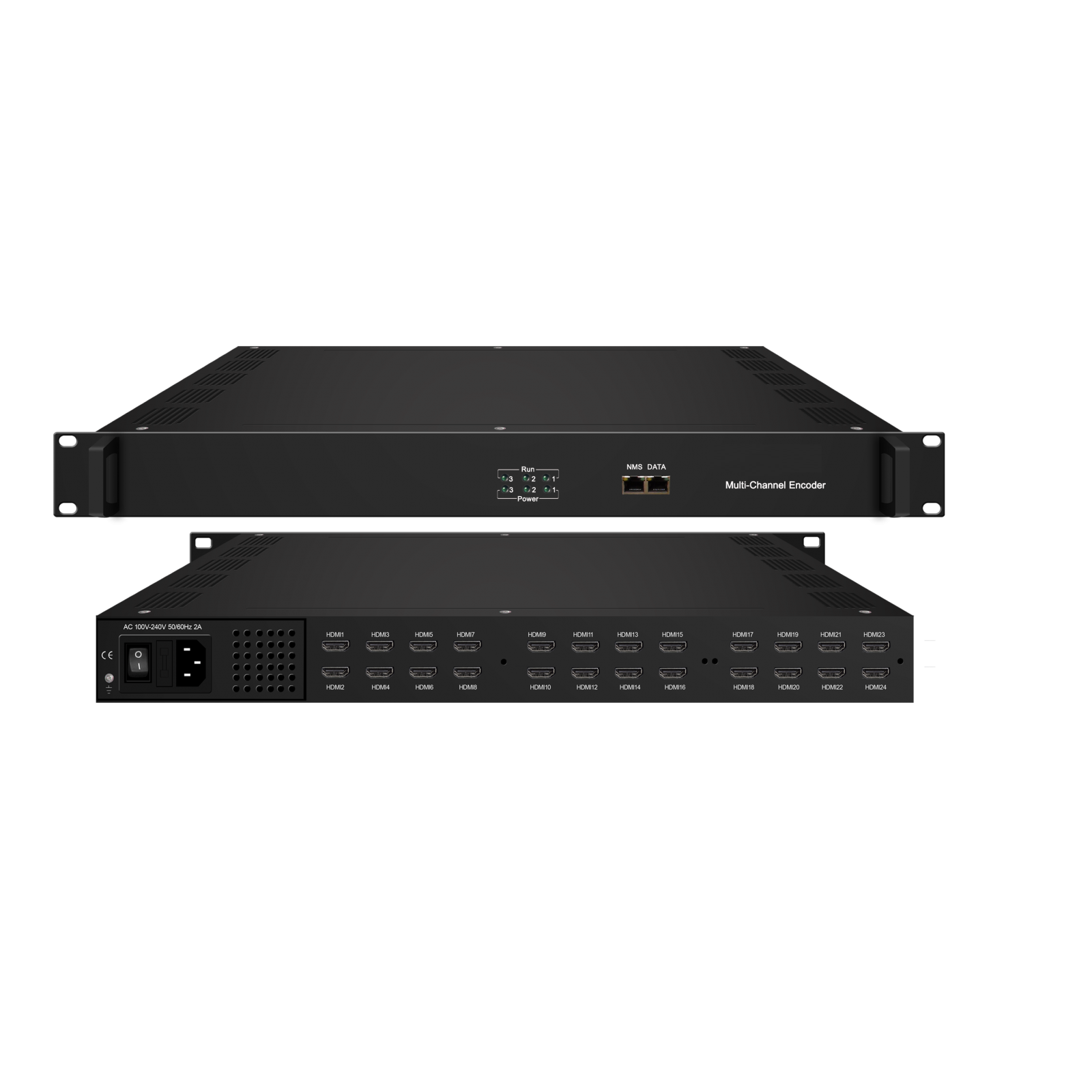

Input
|
8/12/16/20/24 HD inputs
|
|
Video
|
|
Resolution
|
|
input
|
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i,
|
|
output
|
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720×576_25P,720×480_30P,
|
|
Encoding
|
MPEG-4 AVC/H.264
|
|
Bit-rate
|
1~13Mbps each channel
|
|
Rate Control
|
CBR/VBR
|
|
GOP Structure
|
IP…P (P Frame adjustment, without B Frame )
|
|
Audio
|
|
Encoding
|
MPEG-1 Layer 2
|
|
Sampling rate
|
48KHz
|
|
Resolution
|
24-bit
|
|
Audio Gain
|
0-255 Adjustable
|
|
Bit-rate
|
64/128/192/224/256/320/384Kbps
|
|
Multiplexing
|
|
Maximum PID
Remapping
|
180 output pids per channel
|
|
Function
|
PID remapping ( automatically or manually)
|
|
Stream output
|
ASI output(optional) as copy of MPTS
IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol
(8/12 HD inputs with 8/12 SPTS and 1MPTS output
16/20/24 HD inputs with 16/20/24 SPTS or 1MPTS output )
|
|
System function
|
Network management(WEB)
|
|
Miscellaneous
|
|
Dimension(W×L×H)
|
482mm×410mm×44mm
|
|
Environment
|
0~45℃(work);-20~80℃(Storage)
|
|
Power requirements
|
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
|
