Product model
|

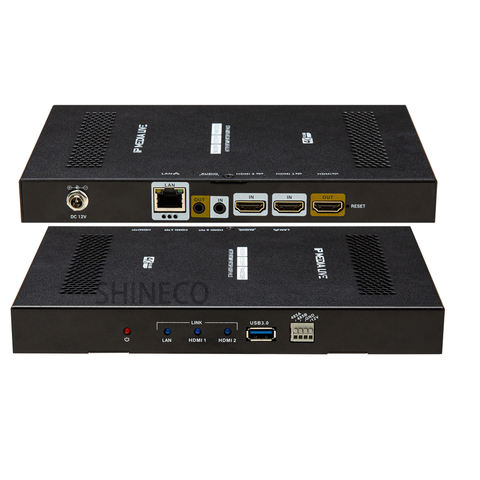

SNK3212 HDMI 4K30 video interaction device
|
|
Input
|
2 HDMI input(up to 4Kp30) and 8 IP input,1 channel audio input
|
|
Output
|
1 IP input&output(up to 4Kp30),1 HDMI output(up to 1080P60),1 audio output
|
|
Video
|
|
Input resolution
|
3840*2160/2048*1152/1920x1080p/1280x720p/720*576i/640*480 etc resolution
|
|
Coding standard
|
H.265 / H.264
|
|
Coding level
|
H.265 main profile
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
|
|
Encoded size
|
640*360~3840*2160(Customized)
|
|
Video bit rate
|
Rate control CBR/VBR 16KBIT/S~50MBIT/S
|
|
Video parcel
|
FFMPEG
|
|
Video frame rate
|
30/60
|
|
OSD
|
Text,picture
|
|
Audio
|
|
Input selection
|
1 HDMI video audio(audio gain)
|
|
Audio coding
|
AAC/MP3/MP2/G.711
|
|
Audio bit rate
|
24Kb/s~256Kb/s
|
|
Sampling rate
|
32000,44100,48000 etc
|
|
IP
output
|
1 RJ 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
|
|
System
|
|
Network protocol
|
Supports HTTP, RTSP, RTMP, ,TCP,SRT, HLS,UDP multicast, unicast
|
|
Configuration management
|
Support IE configuration, remote upgrade
|
|
The common use
|
|
Power supply
|
12V~2A
|
|
power consumption
|
8W
|
|
Size
|
215mm *142mm * 25mm(length*width* height)
|
|
Operating temperature
|
-20℃+ 60℃
|
|
Working humidity
|
<90%,Non-condensing
|
|
Weight
|
0.3KG
|
