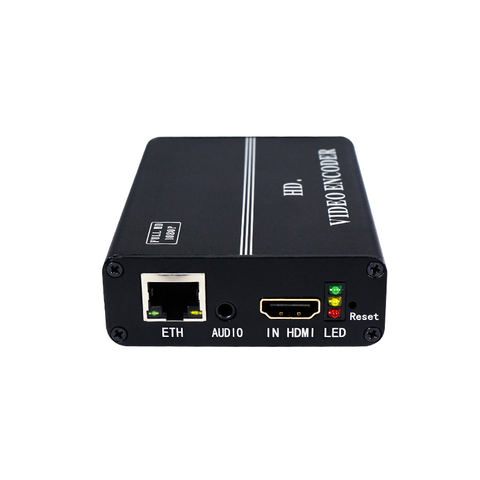

Lithium HDMI 4G Encoder Support LTE B4 B17 Band For South America Market

Short Description:


Product Detail

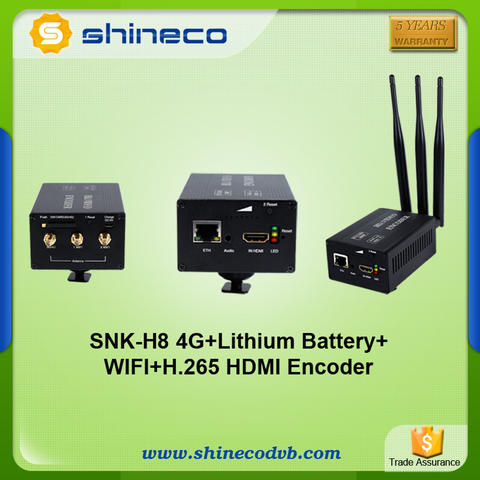

Model SNK-H8 4G+ battery+WIFI+H.265 HDMI Encoder
Input HDMI, 3.5mm Audio
Output IP sigal input
Video
Resolution 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc
Standard H.264/H.265
Level H.265 main profile    H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE
After encoding 640*360~1920*1080
Bit-rate CBR/VBR rate control 16KBIT/S~12MBIT/S
frame 30frame
OSD word.picture
Audio
input Hdmi,3.5 independent audio
encoding AAC/MP3
Bit-rate 64Kb/s~384Kb/s
Sample frequency 32000,44100 etc
IP Output 1RJ 100M/1000M Ethernet,TS stream,dual stream,ONVIF protocol
System
Protocol HTTP,RTSP,RTMP,UDP,unicast.multicast
Management IE,remote upgrade
General
power 12V~2A
comsumption 5W
demension 103mm x 70mm x 25mm
temperature -20℃+ 60℃
humidity <90%,
weight 0.18KG

xxxxxxx.
