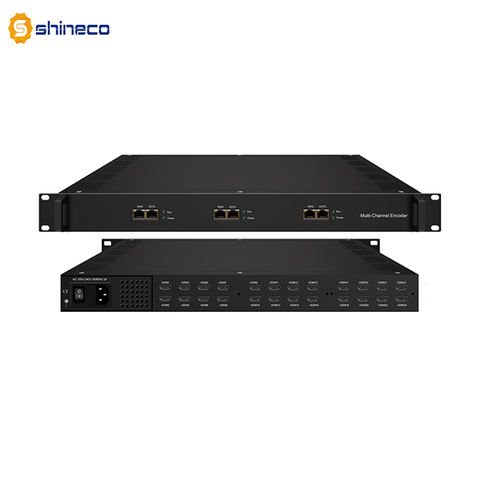

HD IPTV Encoder 1080P Encoder
Short Description:
| Input | 8/16/24 HDMI inputs |
| Video | |
| Resolution | |
| input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i |
| Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P |
| Encoding | MPEG-4 AVC/H.264 |
| Bit-rate | l1~13Mbps each channe |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) |
| Audio | |
| Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Audio Gain | 0-255 Adjustable |
| MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps |
| Stream output | IP output through DATA (GE) over UDP and RTP/RTSP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order) |
| System function | Network management(WEB) |
| Miscellaneous | |
| Dimension (W×L×H) | 482mm×328mm×44mm |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
