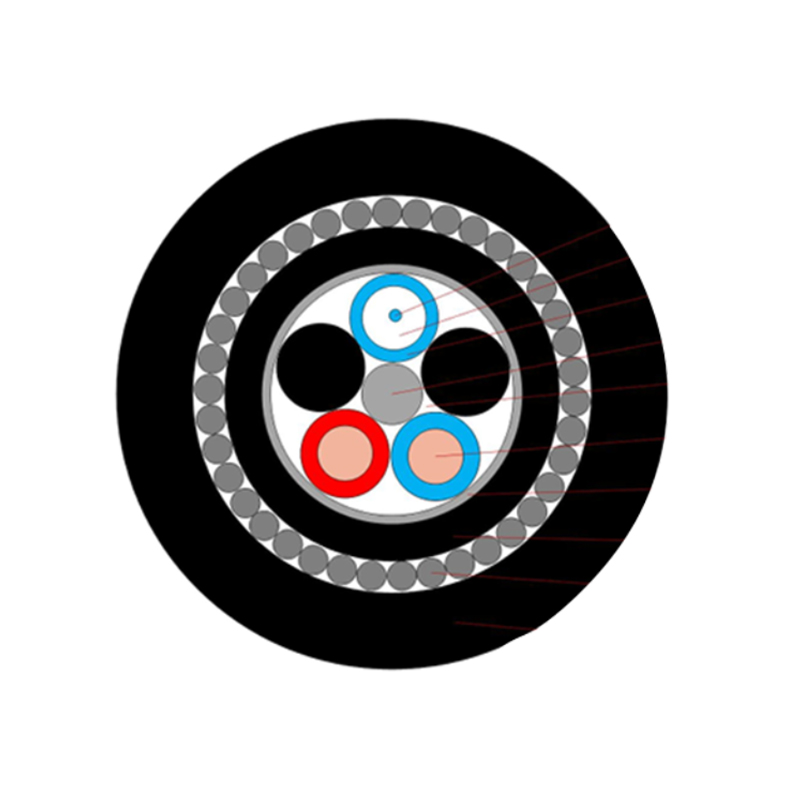

2 4 8 12 core Double Sheathed Photoelectric composite underwater cable with copper conductors GDTA33 Submarine Fiber Optic Cable
Short Description:
| (Item) | |
| (Parameters) | |
| Fiber | |
| Color | Full color spectrum |
| Loose tube | |
| Material | PBT |
| Color | Full color spectrum |
| Filler | |
| Material | PE |
| Color | Black |
| Electrical unit | |
| Material ofInsulation | PVC |
| Color | Red Blue 2mm*2 |
| CSM | |
| Material | Phosphating steel wire |
| Armoured | |
| Material | Plastic coated aluminum strip |
| Inner jacket | |
| Material | MDPE |
| Color | Black |
| Steel wirearmoured | |
| Material | 0.9mm*48 Phosphating steel wire |
| Outer jacket | |
| Material | MDPE |
| Color | Black |
| Min. bendingradius | |
| Static | 12.5times cable diameter |
| Dynamic | 25times cable diameter |
| Tensile performance | |
| Short term | 10000N |
| Crush | |
| Short term | 5000N/100mm |
