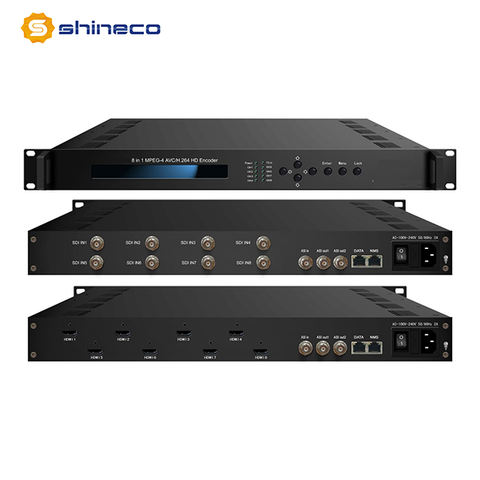

IPTV Streaming Server IPTV MPEG4 8 HDMI Encoder
Short Description:
| Input | 8×HDMI inputs (8 HD-SDI inputs) |
| Video | |
| Resolution | 1920*1080_60p, 1920*1080_50p |
| Encoding | MPEG4 AVC/H.264 High Profile |
| Bit-rate | 0.8Mbps~20Mbps (each channel) |
| Rate Control | CBR/VBR |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Audio | |
| Encoding | MPEG-1 Layer 2 (HE-AAC V2/AAC-LC optional) |
| Sampling rate | 48KHz |
| Bit-rate | 64Kb/s~384Kb/s each channel |
| Multiplexing | 1 ASI input multiplexed with local 8 channels of TS (4 channels) |
| Stream output | 2*ASI output, BNC interface |
| System function | LCD/keyboard operating, NMS supporting |
| Miscellaneous | |
| Dimension (W× L× H) | 440mm×410mm×44.5mm |
| Approx weight | 4kgs |
| Temperature | 0~45°C(work), -20~80°C(Storage) |
| Power | AC 100V-220V±10%, 50/60Hz |
| Consumption | 25W |
