| Frequency Range |
47~860MHz (Any one channel) |
| Output Level |
≥105dBμV |
| Output Level Adjustment Range |
0~-20dB (Variable) |
| Video to Audio Carrier |
-10dB~-30dB adjustable |
| Output Impedance |
75Ω |
| Spurious Output Suppression |
≥60dB |
| Frequency Accuracy |
≤±5KHz (VHF) , ≤±10KHz (UHF) |
| Video Output Reflection |
≥12dB (VHF); ≥10dB (UHF) |
| Video Input Level |
1.0Vp-p (87.5% Modulation) |
| Video Input Impedance |
75Ω |
| Differential Gain |
≤5% (87.5% Modulation) |
| Differential Phase |
≤5°(87.5% Modulation) |
| C/L Delay |
≤45 ns |
| Flatness |
±1dB |
| Video Modulator Depth |
0~90% (Variable) |
| Video S/N |
≥55dB |
| Audio Input Level |
1Vp-p (±50KHz) |
| Audio Input Impedance |
600Ω |
| Audio S/N |
≥57dB |
| Audio Pre-weighted |
50μs |
| Power Supply |
AC 220V±10% 50Hz±2Hz,50W |
| Working Temperature |
0~40℃ |

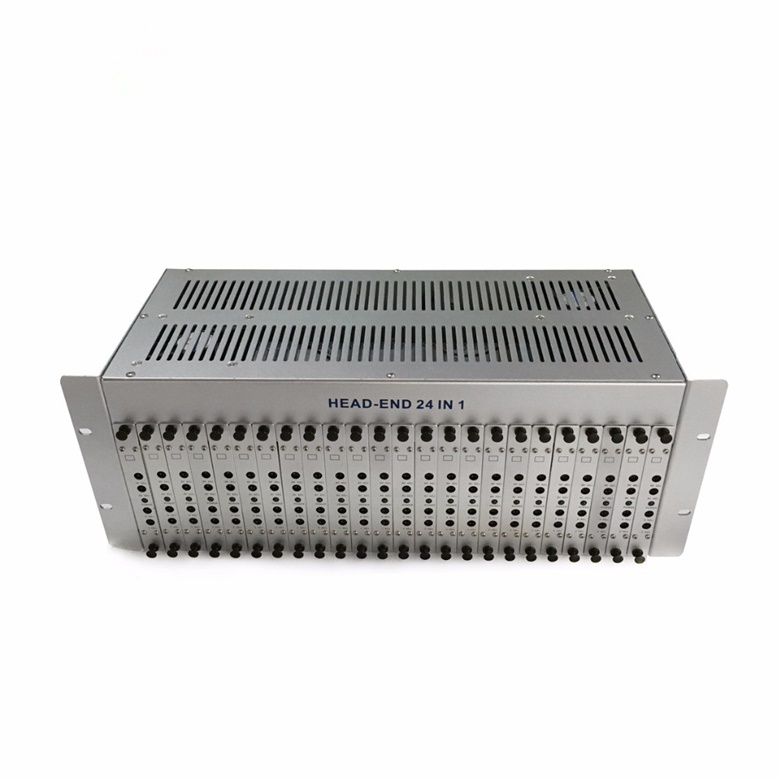

| Dimensions |
19 Inch 4 U housing |
