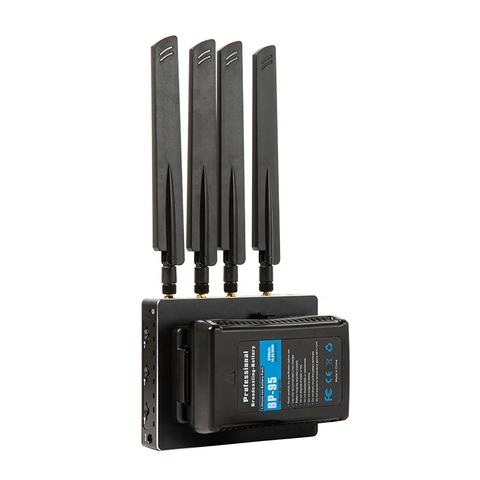

Shineco WIFI 3G/4G HDMI Multicast IP Encoder for Facebook/Youtobe
Short Description:
| Model | SNK-H8 4G+ battery+WIFI+H.265 HDMI Encoder |
| Input | HDMI, 3.5mm Audio |
| Output | IP sigal input |
| Video | |
| Resolution | 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc |
| Standard | H.264/H.265 |
| Level | H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
| After encoding | 640*360~1920*1080 |
| Bit-rate | CBR/VBR rate control 16KBIT/S~12MBIT/S |
| frame | 30frame |
| OSD | word.picture |
| Audio | |
| input | Hdmi,3.5 independent audio |
| encoding | AAC/MP3 |
| Bit-rate | 64Kb/s~384Kb/s |
| Sample frequency | 32000,44100 etc |
| IP Output | 1RJ 100M/1000M Ethernet,TS stream,dual stream,ONVIF protocol |
| System | |
| Protocol | HTTP,RTSP,RTMP,UDP,unicast.multicast |
| Management | IE,remote upgrade |
| General | |
| power | 12V~2A |
| comsumption | 5W |
| demension | 103mm x 70mm x 25mm |
| temperature | -20℃+ 60℃ |
| humidity | <90%, |
| weight | 0.18KG |
