Live Streaming 4Kp60 264 265 IPTV 4K Encoder
Short Description:

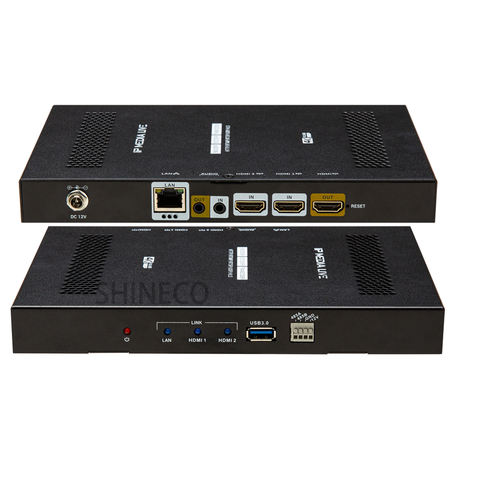

| Product model | SNK3212 HDMI 4K6 video interaction device |
| Input | 2 HDMI input(up to 4Kp30) and 8 IP input,1 channel audio input |
| Output | 1 IP input&output(up to 4Kp30),1 HDMI output(up to 1080P60),1 audio output |
| Video | |
| Input resolution | 3840*2160/2048*1152/1920x1080p/1280x720p/720*576i/640*480 etc resolution |
| Coding standard | H.265 / H.264 |
| Coding level | H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
| Encoded size | 640*360~3840*2160(Customized) |
| Video bit rate | Rate control CBR/VBR 16KBIT/S~50MBIT/S |
| Video parcel | FFMPEG |
| Video frame rate | 30/60 |
| OSD | Text,picture |
| Audio | |
| Input selection | 1 HDMI video audio(audio gain) |
| Audio coding | AAC/MP3/MP2/G.711 |
| Audio bit rate | 24Kb/s~256Kb/s |
| Sampling rate | 32000,44100,48000 etc |
| IP output | 1 RJ 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol |
| System | |
| Network protocol | Supports HTTP, RTSP, RTMP, ,TCP,SRT, HLS,UDP multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade |
| The common use | |
| Power supply | 12V~2A |
| power consumption | 8W |
| Size | 215mm *142mm * 25mm(length*width* height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 0.3KG |
