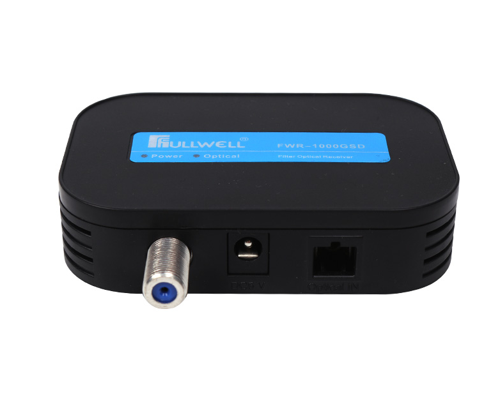

FTTH Mini filter Optical Node for CATV Pon
Short Description:
| Items | |
| Unit | Parameter |
| Input Wavelength | |
| (nm) | 1310,1490,1550 |
| Operation Wavelength | |
| (nm) | 1540～1560 |
| Channel Separation | |
| (dB) | ≥40 (1310/1490nm and 1550nm) |
| Responsivity | |
| (A/W) | ≥0.9 |
| Receiving Power Range | |
| (dBm) | +2～-18 |
| Reflection Loss | |
| (dB) | ≥55 |
| Fiber Link | |
| / | SC/APC |
| Bandwidth/Flatness | |
| MHz/dB | 47-1000/≤±1 |
| Output Level | |
| dBuv | AGC: 82±1/(-2～--12dBm) |
| Reflection Loss | |
| dB | ≥14(75Ω Characteristic Impedance) |
| RF Output Interface | |
| / | Male (or Female) |
| CNR/MER | |
| dB | ≥44/34(PAL-D 60CH, OMI3.8%, -9dBm) |
| CTB/CSO/HUM | |
| dB | ≥65/≥60/≥60(-1dBm Receive) |
| Power Supply/Consumption | |
| V/W | AC100～240V→DC5/3 |
| Working/Storage Temperature | |
| ℃ | -35～50/-40～75 (Humidity 5～90%) |
| Dimension | |
| mm | 90×60×22 |
