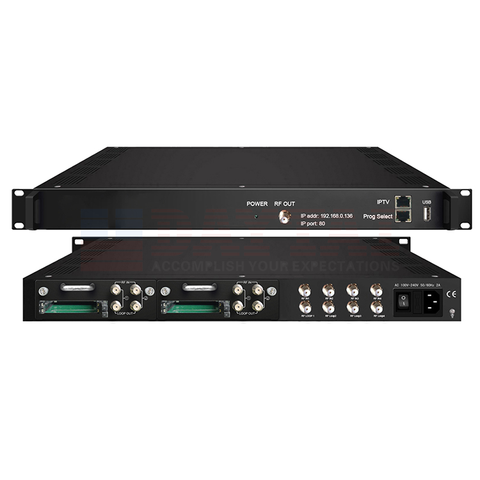

Digital TV Headend demodulation de-scrambler 1U 8 Way Multi-Channel ASI IP Input DVB ISDB ATSC CI-Receiver
Short Description:
| Item | |
| Specification | |
| Input | |
| 2 or 4* tuner inputs (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type1*ASI input for re-mux, BNC interface16*IP input for re-mux (UDP/RTP) | |
| Tuner Section | |
| Multi-mode tuners switchable | |
| DVB-C | |
| Input Frequency | |
| 60 ~890 MHz | |
| Standard | |
| J.83A, J.83C | J.83B |
| Constellation | |
| 16/32/64/128/256 QAM | 64/256 QAM |
| DVB-T/(T) | |
| Input Frequency | |
| 60 ~890 MHz | |
| Bandwidth | |
| 6/7/8 M | |
| ISDB-T | |
| Input Frequency | |
| 60 ~890 MHz | |
| DVB-S/S2/S2X Tuner | |
| DVB-S | |
| Input Frequency | |
| 950~2150MHz | |
| Symbol rate | |
| 0.5~45Msps | |
| Signal Strength | |
| - 65- -25dBm | |
| FEC | |
| 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Constellation | |
| QPSK | |
| Max input bitrate | |
| ≤129 Mbps | |
| DVB-S2 | |
| Input Frequency | |
| 950~2150MHz | |
| Symbol rate | |
| QPSK/8PSK /16APSK: 0.5~45 Msps32APSK: 0.5~40Msps; | |
| FEC | |
| QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Constellation | |
| QPSK, 8PSK, 16APSK, 32APSK | |
| Max input bitrate | |
| ≤170 Mbps | |
| DVB-S2X | |
| Input Frequency | |
| 950~2150MHz | |
| Symbol rate | |
| QPSK/8PSK /16APSK: 0.5~45 Msps8APSK: 0.5~40Msps32APSK: 0.5~40Msps | |
| FEC | |
| QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/208PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/108APSK: 5/9-L, 26/45-L16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/9032APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 | |
| Constellation | |
| QPSK, 8PSK, 8APSK, 16APSK, 32APSK | |
| Max input bitrate | |
| ≤170 Mbps | |
| ATSC | |
| Input Frequency | |
| 54~858MHz | |
| Bandwidth | |
| 6M | |
| Constellation | |
| 8 VSB | |
| Descrambling | |
| CAM/CI Quantity | |
| 2 (per demodulation module) | |
| BISS Mode | |
| Mode 1, Mode E | |
| Output (per demodulation module) | |
| 1*MPTS & 16*SPTS over UDP, RTP.1000 Base-T Ethernet interface (unicast / multicast) | |
| 1×ASI mirrored out of MPTS, BNC interface | |
| System | |
| Remote management | |
| Web-server Management | |
| Language | |
| English | |
| Upgrade | |
| web management | |
| Miscellaneous | |
| Dimension | |
| 482*300*44mm (W×L×H) | |
| Environment | |
| 0~45℃(work)；-20~80℃（Storage） | |
| Power requirements | |
| 100~240VAC, 50/60Hz | |
| Power consumption | |
| 15W | |
