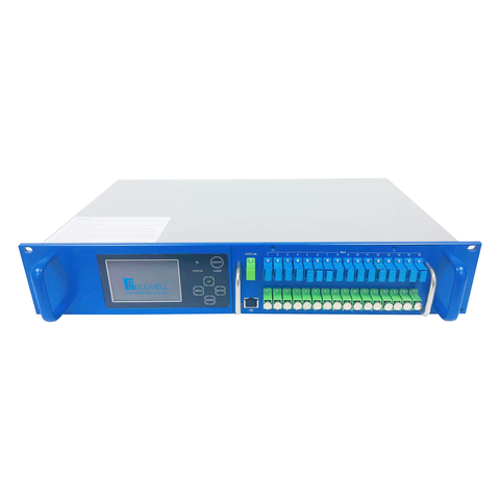

patented plug in module 32 ports 20-23dBm GPON EPON 1550nm CATV & Satellite TV WDM EDFA EYDFA Combiner fro RF video ov

Short Description:


Product Detail

Items
  Parameter
CATV Operation wavelength
nm 1540~1565
OLT pass wavelength
nm  1310/1490
Number of uplink optical ports (for OLT)
pcs 32
CATV input power
dBm -10~+10
Total output power
dBm 31~38
Each port output power
dBm 14~23
Difference of each output power
dB -0.5~+0.5
Output power adjustable range
dBm -3~0
Noise figure (Pin=0dBm)
dB 4.5~5.0
Polarization dependence loss
dB 0.3
Polarization dependence gain
dB 0.4
Polarization mode dispersion
ps/nm 0.3
Input/output isolation
dB 30
Pump power leakage
dBm -30
Echo loss
dB 55
SNMP network management interface
  RJ45
Optical connector
  SC/UPC,SC/APC,LC/APC, LC/UPC
Power supply
V 90~265
Power consume
W 50~150
Work temp.
0~65
Storage temp. -40~80
Relative humidity
% 5~95

xxxxxxx.
