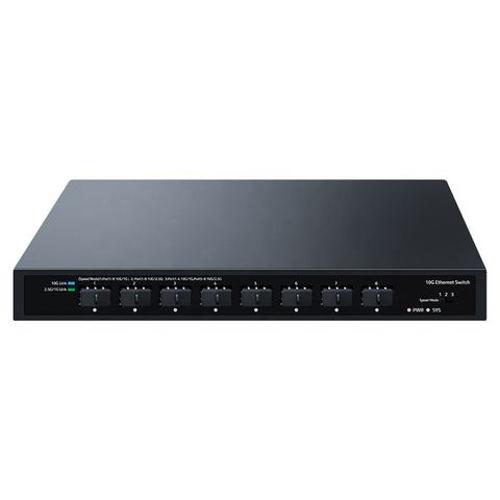

10Gbe SFP+ Ethernet Switch 8 Port 10000Mbps Optical SFP+ Network Switch Plug and Play Home Lab Unmanaged Switch
Short Description:
| Power | DC 12V |
| Ethernet | 8* 10G SFP+ ports |
| Chip Scheme | RTL9303 |
| Bandwidth | 160Gbps |
| Packet Forwarding Rate | 119.04Mpps |
| RAM | 128MByte |
| Flash Memory | 16MByte |
| Memory Cache | 12Mbit |
| Mac Address Table | 16K |
| Jumbo Frame | 12Kbytes |
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3z (Gigabit Ethernet fiber standard)IEEE 802.3ae (10G Ethernet)IEEE802.3x (Flow control) |
| Industry Standard | EMS: EN61000-4-2 (ESD)EN61000-4-5 (Surge) |
| Optical Media | Multimode Fiber: 50/125, 62.5/125, 100/140umSingle mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Safety certification | CE, FCC, RoHS |
| Working environment | Working temperature: - 10~50 ° CStorage temperature: - 40~70 ° CWorking humidity: 10%~90%, non-condensingStorage humidity: 5%~95%, non-condensing |
| Indicator Light | PWR (Power Indicator) |
| PWR(Power Indicator) | On: Powered onOff: Powered off |
| SYS | Flashing: System startup in progressOn: System startup completed |
| SFP Port Light | Blue on: 10G linkGreen on: 1000M/2500M linkFlashing: Data transmittingOff: Link not working |
| Dialing light | Left Side: 1 to 8 Ports have speeds of 10G/1G. Middle: 1 to 8 Ports have speeds of 10G/2.5G.Right Side: 1 to 4 Ports have speeds of 10G/1G, 5 to 8 Ports have speeds of 10G/2.5G. |
| Structure size | Productsize:220*126*28mmPackagesize:259*228*60mmNetweight:0.62KGGrossweight:0.86KG |
| Packing information | Cartonsize:535*320*480mmPackingquantity:20PcsPackingweight:18.2KG |
| Supply voltage | Power Adapter: 12V2A |
| Power | Maximum 18W |
| Packing list | Switch 1PCS, manual 1PCS, certificate of conformity 1PCS, power cord 1PCS |
