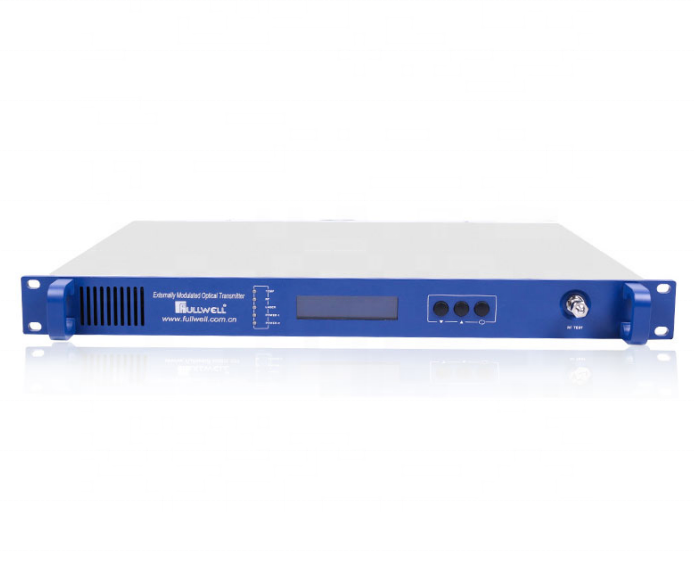

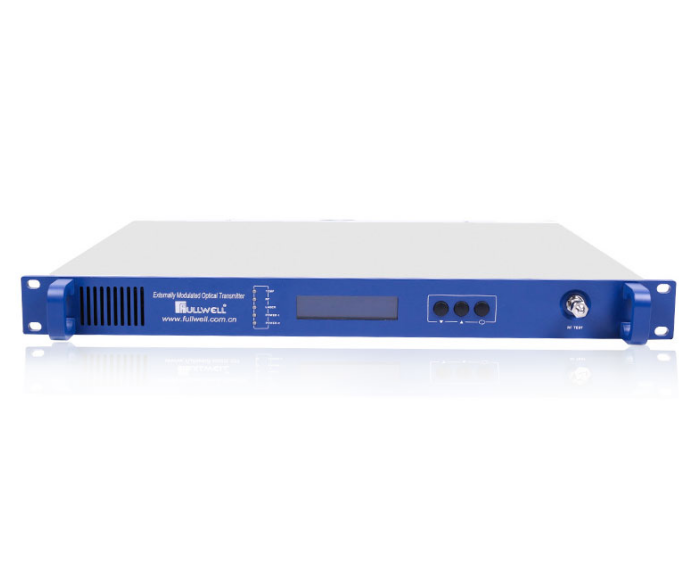

FWT-2600C satellite network equipment Analog Digital Signal Satellite CATV FTTH Optical transmitter
Short Description:
| Items | |
| Performance Index | Notes |
| Optical Index | |
| Operating Wavelength (nm) | |
| 1548~1563 | FWT-2600C |
| Output Power (mW) | |
| 10 | 3, 5, 7, 9, 10 |
| Noise Equivalent Intensity (dB/Hz) | |
| ≤-160 | RIN (47~862MHz) |
| ≤-145 | RIN (47~2600MHz) |
| Return Loss (dB) | |
| ≥50 | |
| Connector | |
| FC/APC | SC/APC Optional |
| RF | |
| Working Bandwidth (MHz) | |
| 47-862 | |
| Input Level (dBMV) | |
| 18~28 | AGC(OMI=3%) |
| Flatness (dB) | |
| ≤±0.75 | 47~862MHz |
| RF Input Return Loss (dB) | |
| >16 | 47~750MHz |
| RF Input Impedance (Ω) | |
| 75 | |
| Transmitting Channel | |
| PAL-D/60CH | Comment 1 |
| CNR1(dB) | |
| ≥52.5 | Back to back |
| CNR2(dB) | |
| ≥50.5 | 50Km Fiber, 0dBm |
| CTB(dB) | |
| ≤-65 | |
| CSO(dB) | |
| ≤-65 | |
| HUM(dB) | |
| ≤-60 | |
| IF | |
| Working Bandwidth (MHz) | |
| 960~2600 | |
| Input Level (dBMV) | |
| 5~15 | AGC(OMI=1%) |
| Flatness (dB) | |
| ±1.5 | 960~2600MHZ |
| RF Input Return Loss (dB) | |
| ≥10 | |
| Transmitting Channel | |
| 36CH | Comment 2 |
| CNR(dB) | |
| ≥27 | Noise Bandwidth 27MHz |
| CTB(dB) | |
| ≤-36 | |
| CSO(dB) | |
| ≤-36 | |
| HUM(dB) | |
| ≤-60 | |
| General Parameter | |
| Power Supply (VAC) | |
| 90~265VAC | Hot-pluggable Power Supply |
| Power Consumption(W) | |
| ≤50 | |
| Work Temperature (°C) | |
| 0~50 | Automatic Mechanical Temperature |
| Dimension(") | |
| 19(1U) | Chassis |
