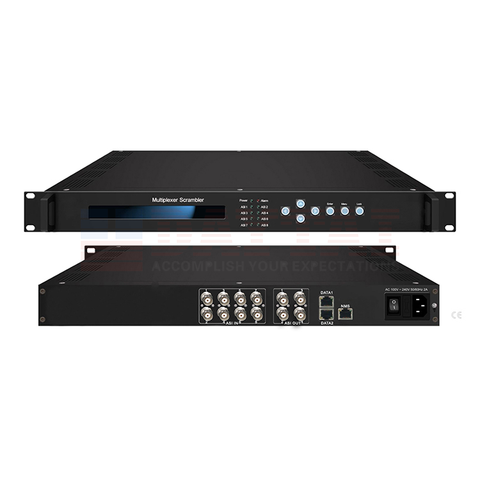

Digital TV Head-end 8 ASI input IP over UDP, RTP/RTSP Multiplexer Sracmbler
Short Description:
| Item | |
| Specification | |
| Input | |
| 8 ASI input+64 IP input DATA 1 and DATA 2 over UDP protocol | |
| Re-multiplex | |
| PID re-mapping | |
| PCR accurate adjusting | |
| PSI/SI (PAT, PMT) tables auto generation and edition | |
| Scrambling | |
| Simul-crypt CA | |
| 6 | |
| Standard | |
| ETR289, ETSI 101 197, ETSI 103 197 | |
| Connection | |
| Local/Remote connect | |
| Output port | |
| ASI | |
| 2 groups separate outputs (each group has 2 channels) | |
| IP | |
| MPTS over UDP, RTP/RTSP output (RJ45), 1000Mbps Ethernet, DATA 1 and DATA 2 | |
| PID | |
| Output range | |
| 0x0000—0x1FFF | |
| PID transparent | |
| Any PID transparent and mapping achievable | |
| Amount of output PID | |
| 512 | |
| NMS port | |
| Ethernet port | |
| 10/100M/1000M self adaption | |
| General | |
| Dimensions | |
| 482mm×300mm×44mm (WxLxH) | |
| Weight | |
| 3.5kg | |
| Temperature | |
| 0~45℃(operation), -20~80℃(storage) | |
| Power supply | |
| AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
