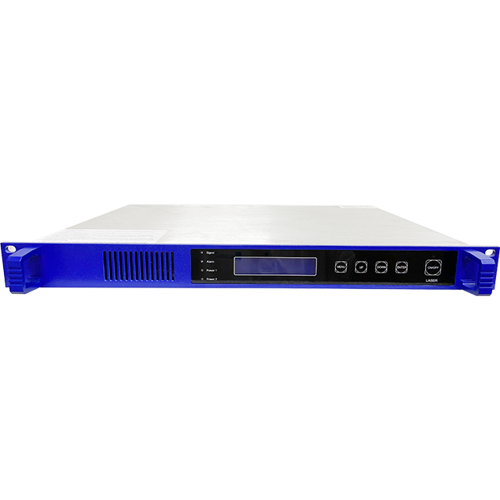

customized C-Band Pre Amplifier working wavelength for 1528~1565nm

Short Description:


Product Detail

Items
Unit Performance Index
Optical Operating Wavelength
nm 1528~1565(C-Band)
Input Optical Power Range
dBm -30~-15
Nominal optical input power
dBm -25
Output Power
dBm -10~+12(Output power can be customized)
Noise Ratio
dB 3.8~5.5
Gain Flatness
dB <±0.3
Optical Power Output Stability
dB <±0.5
Polarization Sensitivity
dB <0.2
Polarization Mode Dispersion
ps <0.5
Optical connector (IN/OUT)
LC/UPC,SC/UPC,FC/UPC
Pump Operating Number
N 1~3
Power Supply
VAC 90~265 (Hot-pluggable dual power supply)
VDC -48 (Hot-pluggable dual power supply)
Working Temperature
0~50
Case Size
mm 482.6×387×44
