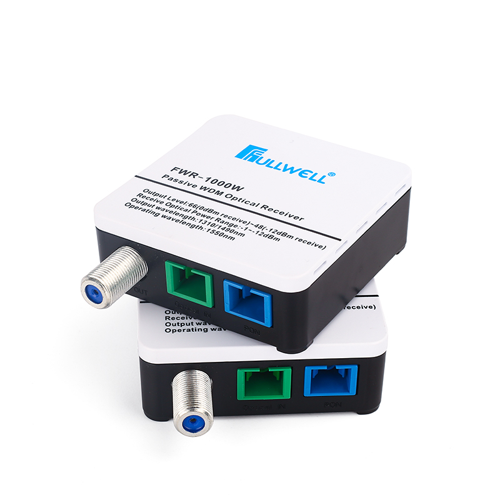

Low cost for Passive optical fiber mini node with WDM FWR-1000W
Short Description:
| Item | |
| Unit | |
| Performance Parameter | |
| Optical characteristic | |
| input wavelength | |
| (nm) | |
| 1310,1490,1550 | |
| Output wavelength | |
| (nm) | |
| 1310,1490 | |
| operation wavelength | |
| (nm) | |
| 1540～1560 | |
| channel separation | |
| (dB) | |
| ≥40（1310/1490nm and 1550nm ) | |
| response | |
| (A/W) | |
| ≥0.9 | |
| receive power range | |
| (dBm) | |
| 0～-12(-1~-6 recommended) | |
| reflection loss | |
| (dB) | |
| ≥45 | |
| fiber linker | |
| / | |
| SC/APC | |
| PON linker | |
| / | |
| SC/UPC(or SC/APC) | |
| RF characteristic | |
| Bandwidth/flatness | |
| MHz/dB | |
| 47-1000/≤±2 | |
| output level | |
| dBuv | |
| 66(0dbBm receive) -48(-9 dBm receive) | |
| RF output interface | |
| / | |
| 1 way output Female or RF | |
| CNR/MER | |
| dB | |
| ≥44/34(0dBm),≥38/29dBm(-6dBm) | |
| CTB/CSO/HUM | |
| dB | |
| ≥70/≥66/≥60(-3dBm/60dBuv) | |
| Other requirement | |
| working/storage temperature | |
| ℃ | |
| -35～50/-40～75(humidity 5～90%) | |
| size | |
| mm | |
| 78×60×22.5 | |
