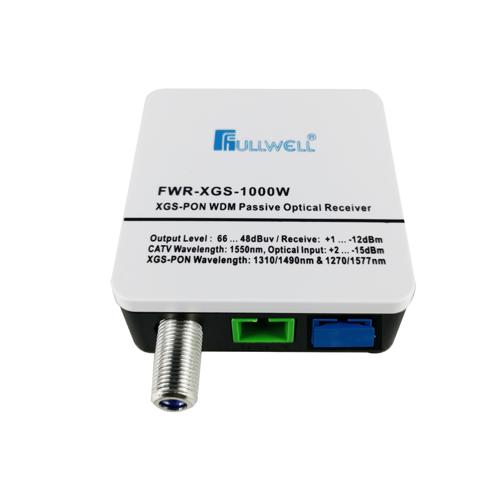

XGS-PON CATV OPTICAL RECEIVER WITH SC/APC connector FWR-XGS-1000W
Short Description:
| Item | |
| Unit | Performance Parameter |
| Optical Characteristic | |
| Input Wavelength | |
| nm | 1310,1490,1550,1270,1577 |
| XG（S）-PON Wavelength | |
| nm | 1310/1490 &1270/1577 |
| Operation Wavelength | |
| nm | 1540～1565 |
| Channel Separation | |
| dB | ≥40（1310/1490nm and 1550nm ) |
| Response | |
| A/W | ≥0.9 |
| Receiving Power Range | |
| dBm | 0～-12（advice -1～-6） |
| Reflection Loss | |
| dB | ≥45 |
| Optical Connector | |
| / | Optical-IN:SC/APC, PON:SC/UPC |
| RF Characteristic | |
| Bandwidth/Flatness | |
| MHz/dB | 47～1000/≤±2 |
| Output Level | |
| dBuv | 66（0dBm receive）-48(-9dBm receive) |
| RF Output Interface | |
| / | Female or RF |
| CNR/MER | |
| dB | ≥44/34(0dBm)，≥38/29(-6dBm) |
| CTB/CSO/HUM | |
| dB | ≥70/≥66/≥60（-3dBm/60dBuv） |
| Other Requirement | |
| Working/Storagetemperature | |
| ℃ | -30～55/-40～75 |
| Working/Storage Humidity | |
| % | Humidity(5%-90%)（(No Condensation） |
| Size | |
| mm | 78×60×22.5 |
| CTB | |
| dB | |
| ≥65/≥60/≥60(-1dBm receive) | |
| Power supply/consumption | |
| V/W | |
| AC100～240V→DC5/3 | |
| Working/storage Temperature | |
| ℃ | |
| -35～50/-40～75(humidity 5～90%) | |
| Size | |
| mm | |
| 95×92×23 |
