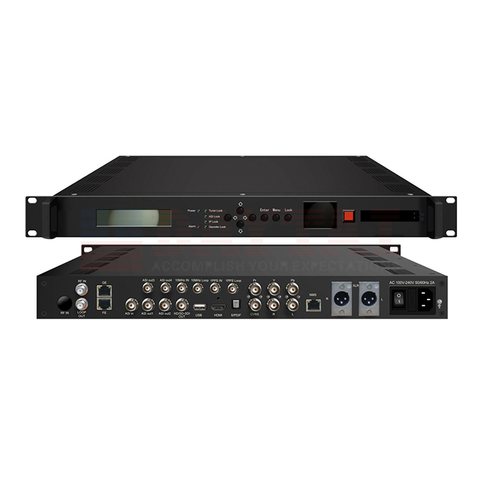

HD IRD decode TS signals from ASI MPEG-2 and H.264 IP Audio Video ISDB Multiplexing TS Integrated Receiver Decoder
Short Description:
| Item | |
| Specification | |
| Input | |
| 1RF Input (DVB-C/DVB-S/S2/ISDB-T optional) | |
| 1ASI Input (support 188/204 package format) | |
| 1 IP MPTS Input (100Mbps, RJ45 Port) over UDP/RTP protocol | |
| GPS 10Mhz Clock Input | |
| GPS 1PPS Signal Input | |
| Demodulating Section | |
| DVB-C | |
| Standard | |
| J.83A(DVB-C), J.83B, J.83C | |
| Input Frequency | |
| 30 MHz~1000 MHz | |
| Constellation | |
| 16/32/64/128/256 QAM | |
| DVB-S | |
| Input Frequency | |
| 950-2150MHz | |
| Symbol rate | |
| 1-45Msps | |
| Signal Strength | |
| - 65- -25dBm | |
| Constellation | |
| 1/2, 2/3, 3/4, 5/6, 7/8 QPSK | |
| DVB-S2 | |
| Input Frequency | |
| 950-2150MHz | |
| Symbol rate | |
| 1~45 Msps | |
| Code rate | |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Constellation | |
| QPSK, 8PSK (16 APSK, 32 APSK on request) | |
| Roll off | |
| 0.20, 0.25, 0.35 | |
| ISDB-T | |
| Input Frequency | |
| 30-1000MHz | |
| ASI Output | |
| ASI 1&2 output BTS after multiplexing, ASI 3&4 for tuner pass-through | |
| IP Output | |
| 1 IP MPTS output (100M, RJ45 Port) over UDP/RTP protocol | |
| Video Output | |
| 1xCVBS(BNC): 576i@25fps, 480i@29.97fps | |
| 1xYPbPr(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps | |
| 1xHD/SD-SDI(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps; 576i@25fps; 480i@29.97fps | |
| 1 x HDMI: 1080i@25, 29.97, 30fps; 720p@50, 59.94fps | |
| Audio Output | |
| Stereo unbalanced audio: BNC interface | |
| Stereo balanced audio: XLR interface | |
| Digital audio: SPDIF | |
| Video Decoding | |
| MPEG-2, H.264 | |
| Audio Decoding | |
| MPEG1 layer 2, AC3, HE-AAC (v2), LC-AAC | |
| ISDB-T multiplexing | |
| Support 256 PID mapping per channel (Automatically or manually) | |
| PCR accurate adjusting | |
| Generate PSI/SI table automatically | |
| ISDB-T BTS parameters | |
| Modes：mode1(2k), mode2(4k), mode3(8k) | |
| Guard Interval：1/4,1/8,1/16,1/32 | |
| Code Rate：1/2,2/3,3/4,5/6,7/8 | |
| Constellations: DQPSK/QPSK/16QAM/64QAM | |
| Layer Mode：A, A+B, A+B+C | |
| Number of Segment: 1-13 | |
| Bandwidth：6MHz,7MHz,8MHz | |
| SFN parameters | |
| Maximum time delay：0ms ～ 1000ms | |
| Device delayed time shifting：-1000ms ～ +1000ms | |
| Device ID:0 ～ 30 | |
| DVB-CI Parameters | |
| Descrambler: DVB-CSA | |
| Smart Card interface: ISO7816 | |
| Interface Card Separation: PCMCIA | |
| System | |
| Support SNMP/Web management, LCD + keyboard control | |
| English and Chinese interface conversion | |
| Ethernet software upgrade | |
| General | |
| Dimensions | |
| 482mm*455mm*44.5mm | |
| Approx weight | |
| 3.2kg | |
| Power | |
| <20W(Max) | |
| Temperature | |
| 0~45℃(Operating), -20~80℃(Storage) | |
