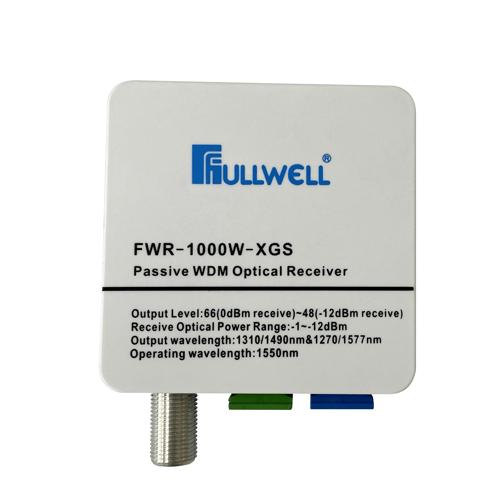

micro node 1550nm passive ftth XGS-PON&CATV wdm receive node with output 66dBuv for HFC FTTH network
Short Description:
| Item | |
| Unit | Performance Parameter |
| Optical characteristic | |
| Input wavelength | |
| nm | 1310,1490,1550 &XG(S)-PON,1270/1577nm |
| PON wavelength | |
| nm | 1310,1490 & XG(S)-PON,1270/1577nm |
| Operation wavelength | |
| nm | 1540~1565 |
| Channel separation | |
| dB | ≥40(1310/1490nm & 1270/1577nm and 1550nm ) |
| Response | |
| A/W | ≥0.9 |
| Receiving power range | |
| dBm | 0~-12(advice -1~-6) |
| Reflection loss | |
| dB | ≥45 |
| Optical connector | |
| / | Optical-IN:SC/APC, PON:SC/UPC |
| RF characteristic | |
| Bandwidth/ flatness | |
| MHz/dB | 47~1000/≤±2 |
| Output Level | |
| dBuv | 66(0dBm receive)-48(-9dBm receive) |
| RF output interface | |
| / | Female or RF |
| CNR/MER | |
| dB | ≥44/34(0dBm),≥38/29(-6dBm) |
| CTB/CSO/HUM | |
| dB | ≥70/≥66/≥60(-3dBm/60dBuv) |
| Other requirement | |
| Working/storage temperature | |
| ℃ | -30~55/-40~75 |
| Working/ storage humidity | |
| % | Humidity(5%-90%)((No Condensation) |
| Size | |
| mm | 78×60×22.5 |
