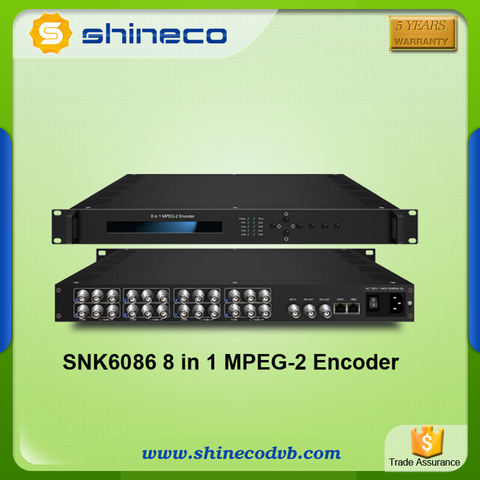

Digital Satellite TV MPEG-2 ASI Encoder, BNC to IP Converter
Short Description:
| Input | 8×CVBS inputs,BNC interface |
| Video | |
| Resolution | PAL: 720×576_50i NTSC: 720×480_60i |
| Encoding | MPEG-2 |
| Bit-rate | 1Mbps~19.5Mbps |
| Rate Control | CBR |
| Chroma | 4:2:0 |
| Aspect Ratio | 4:3 |
| Audio | |
| Encoding | MPEG-1 Layer2 |
| Sampling rate | 48KH |
| Resolution | 24 bit |
| Bit-rate | 64Kbps~384Kbps each channel |
| Multiplexing | 1 ASI input multiplexed with local 8 channel SPTS |
| Stream output | 2 × ASI outputs, BNC interface |
| System function | LCD/keyboard operating, Web NMS support,Chinese-English control interface |
| General | |
| Dimensions (WxDxH) | 482mm×455mm×44.5mm |
| Approx weight | 4Kg |
| Temperature range | 0~45℃(Operation), -20~80℃(Storage) |
| Power requirements | AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz |
| Power consumption | 17.6W |
