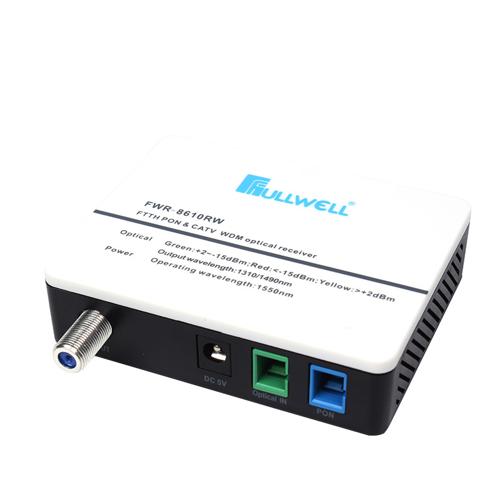

ftth catv high level receiver pon and catv wdm optical receiver with WDM work for FTTH/FTTP
Short Description:
| Item | |
| Unit | FWR-8610RW |
| Optical Characteristic | |
| Input Wavelength | |
| (nm) | 1310/1490/1550 |
| Output Wavelength | |
| (nm) | 1310/1490 |
| Operation Wavelength | |
| (nm) | 1540~1560 |
| Channel Separation | |
| (dB) | ≥40(1310/1490nm and 1550nm ) |
| Response | |
| (A/W) | ≥0.9 |
| Receive Power Range | |
| (dBm) | -18~-2 |
| Reflection Loss | |
| (dB) | ≥55 |
| Fiber Linker | |
| / | SC/APC |
| Pon Linker | |
| / | SC/UPC(or SC/APC) |
| RF Characteristic | |
| Bandwidth/Flatness | |
| MHz/dB | 47-1000/≤±1 |
| Output Level | |
| dBuv | AGC: 82±1/(-2~--12dBm) |
| Reflection Loss | |
| dB | ≥14(75Ω characteristic impedance) |
| RF Output Interface | |
| / | 1 way output |
| CNR/MER | |
| dB | ≥44/34(PAL-D 60CH,OMI3.8%,-9dBm) |
| CTB/CSO/HUM | |
| dB | ≥65/≥60/≥60(-1dBm receive) |
| Other Requirement | |
| Power Supply/Consumption | |
| V/W | External AC100~240V→DC5/5 |
| Working/Storage Temperature | |
| ℃ | -35~50/-40~75(humidity 5~90%) |
