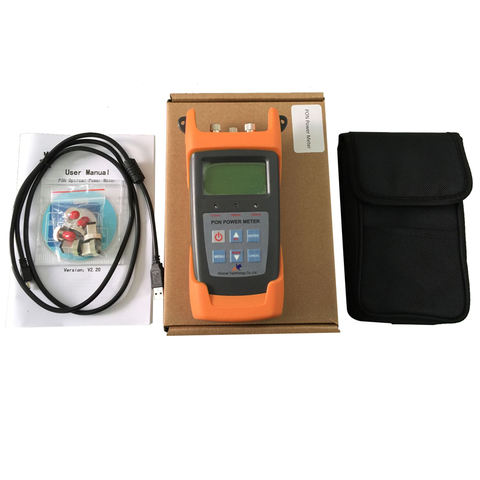

FTTH application maintenance tool vfl visual fault locator PON optical power meter price
Short Description:
| PON module: | |
| 3213 | |
| 3213A | |
| 3213AV | 3213AP |
| Pass Zone(nm) | 1260nm~1360nm |
| MeasurementRange(dBm) | -40dBm~+10dBm |
| Output power(max) | 15dBm |
| Isolation@1490/1550(dB) | >40dB |
| Burst mode measurement error | <±0.5dB |
| Pass Zone(nm) | 1470nm~1505nm |
| MeasurementRange(dBm) | -40dBm~+10dBm |
| Output power(max) | 15dBm |
| Isolation@1310/1550(dB) | >40dB |
| Pass Zone(nm) | 1535nm~1570nm |
| MeasurementRange(dBm) | -40dBm~+10dBm |
| Output power(max) | 25dBm |
| Isolation@(1310/1490nm) | >40dB |
| Connatural uncertainty(dB) | ±0.5dB |
| Linearity(dB) | ±0.1dB |
| Passing through insertion Loss(dB) | <1.5dB |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM 9/125um |
| Measurement Unit | dB/dBm/xW |
| Resolution (dB) | 0.01dB |
| Operation Voltage(V) | DC 3.3V~5.5V |
| Power Supply | 3pc1.5V battery |
| Continuously Operation time (h) | |
| PON:90h | |
| PON:90h OPM:100h VFL:50h | |
| PON:90h VFL:50h | PON:90h OPM:100h |
| Operation Temperature(°C) | -10°C~60°C |
| Storage temperature(°C) | -25°C~70°C |
| Weight(kg) | |
| 423g | |
| 425g | |
| 424g | 424g |
