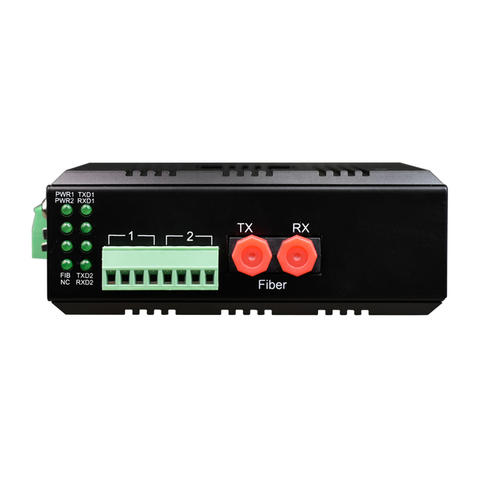

2 Port Serial to Fiber Converter Din Rail RS485 RS232 RS422 over Fiber Optic Converter
Short Description:
| Model Number | FCP-RDQ2G |
| Product Function Description | Transmit 2 channels of RS232/422/485 on optical fiber (three interfaces are provided at the same time) |
| Service Port Description | 1 optical fiber interface; 2 RS232/422/485 serial ports |
| Power Supply | DC power supply:Redundant dual power input DC9-70V or AC7-50V, power consumption <5WOverload protection: support; reverse polarity protection: support; redundant protection: supportAccess terminal: 4-core 5.08mm pitch plug-in terminalAC built-in power supply:AC~85-265V, or DC110-300V wide range input, power consumption <5WOverload protection: support;Access interface: Three-position Cross Style AC seat |
| Product Size | (110mm(L) x 86mm(W) x 40.5mm(H)Installation method: guide rail installation, wall-mounted installation |
| Weight | 0.295Kg / pcs |
