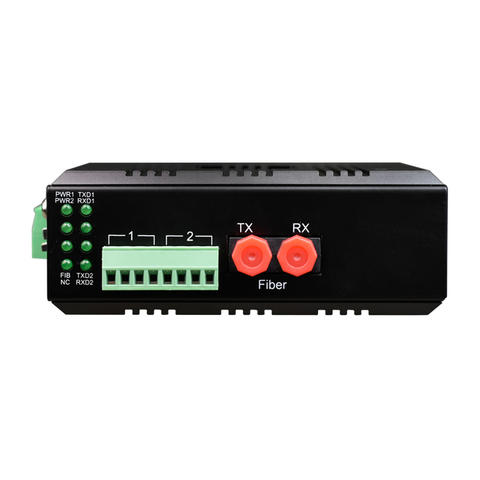

Industrial DIN Rail 1 Port Serial RS485 RS422 RS232 to Fiber Optic Converter
Short Description:
| Product Number | FCP-RDQ1G |
| Product Function Description | Transmit 1 channel RS232/422/485 on optical fiber (three interfaces are provided at the same time) |
| Service Port Description | 1 optical fiber interface; 1 RS232/422/485 serial port |
| Power Supply | DC power supply:Redundant dual power input DC9-70V or AC7-50V, power consumption <5WOverload protection: support; reverse polarity protection: support; redundant protection: supportAccess terminal: 4-core 5.08mm pitch plug-in terminalAC built-in power supply:AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5WOverload protection: support;Access interface: Cross Style AC seat |
| Product Size | 110mm(L) x 86mm(W) x 40.5mm(H)Installation method: guide rail installation, wall-mounted installation |
| Weight | 0.295KG/PCS |
