| Product number |
FCC-D16J |
| Product Function Description |

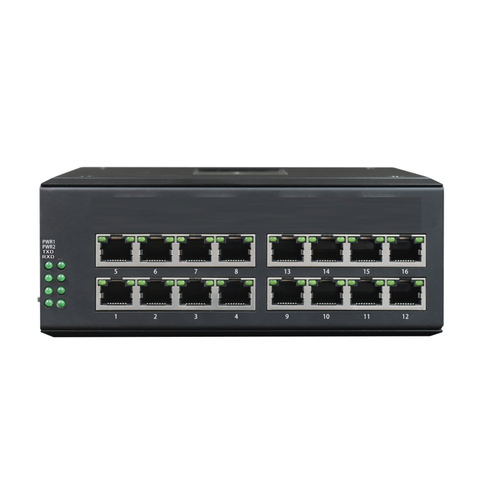

Industrial Rail Type 16 channel RS485 hub RJ45 port |
| Business port description |
16ch RS485 channel, 1ch uplink RS232 / 422 / 485 (optional) interface |
| Power supply |
Redundant dual power input dc9-48v, power consumption < 5WOverload protection: support; Reverse connection protection: support; Redundant protection: supportAccess terminal: 4-core 5.08mm spacing plug-in terminal |
| Product Size |
Shell: IP40 protection grade, aluminum alloy materialDimensions: 162mm (L) x 132mm (W) x 63.0mm (H)Installation mode: rail installation, wall mounted installation |
| Weight |
0.85kg/piece |
