| Model |
FCC-D2J |
| Function Description |

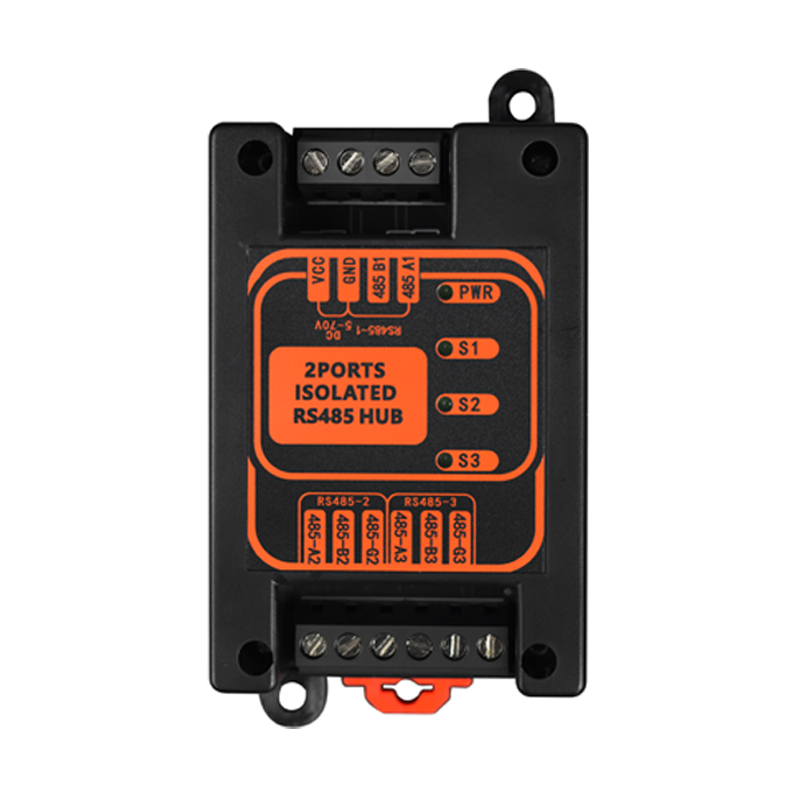

Industrial DIN-Rail 2-Port RS485 Hub |
| Port Description |
2 isolated RS485 channels, 1 upstream isolated RS485 interface |
| Power Supply |
DC5-70V input, power consumption <1WOverload protection: supported; reverse connection protection: supportedAccess terminal: 2-core 5.08mm pitch screw terminal |
| Dimensions |
97mm (L) x 54mm (W) x 32mm (H)Mounting method: 35mm rail mounting, wall mounting |
| Weight |
0.072kg/pc |
