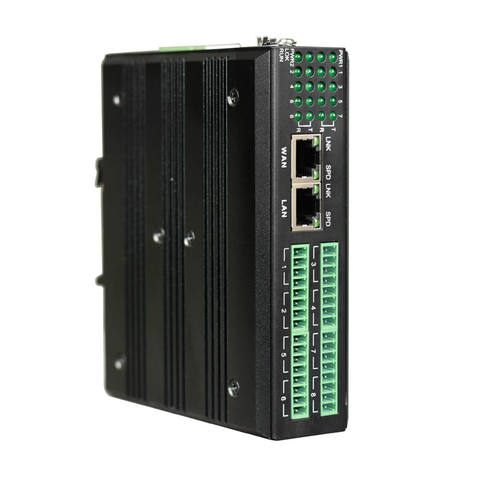

16 Channel Dry Contact Closure over Ethernet Converter

Short Description:


Product Detail

Product Number FCT-K1601
Function Description Transmit 16*Dry Contact on Ethernet, Industrial Rail Type
Port Description 16*Dry Contact interface; 2*100M Ethernet port
Power Supply Redundant dual power supply input DC9-55V or AC7-43V,power consumption <5WOverload protection: support; reverse polarity protection: support; redundant protection: supportAccess terminal: 4-core 5.08mm pitch plug-in terminal
Product Size Shell: IP40 protection grade, aluminum alloy materialDimensions: 133mm(L) x 110mm(W) x 40.0mm(H)Installation method: guide rail installation, wall-mounted installation
Weight 0.65KG/PCS

xxxxxxx.
