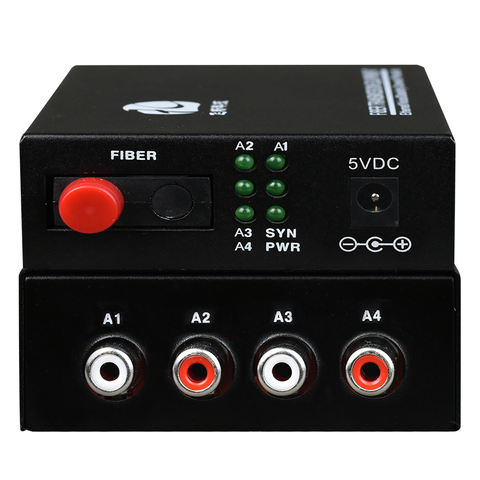

1-4 Channel RCA Broadcast Audio Fiber Optic Multiplexer
Short Description:
| Multimode fiber | |
| 50/125um or 62.5/125um | |
| single mode fiber | 8/125um or 9/125um |
| Transmission distance | |
| 2km | |
| Transmission distance | 20km |
| Wavelength | |
| 850mm | |
| Wavelength | 1310mm |
| Transmit power | |
| -12dbm(min)~-9dbm(max) | |
| Transmit power | -9dbm(min)~-5dbm(max) |
| Transmission accuracy | |
| -28dbm(min) | |
| Transmission accuracy | -27dbm(min) |
| Link budget | |
| 16dbm | |
| Link budget | 18dbm |
| Audio interface | |
| Electrical and mechanical characteristics | |
| Signal level | |
| 0.5~4Vp-p | |
| Power | AC180V~260V;DC-48V;DC +24V |
| impedance | |
| 600Ω | |
| power consumption | >5w |
| Bandwidth | |
| 20Hz~20KHz | |
| Environmental indicators | |
| SNR | |
| >85db | |
| work temperature | -10℃~60℃ |
| Physical interface | |
| FJ45/RCA | |
| Work humidity | 0%~90% |
