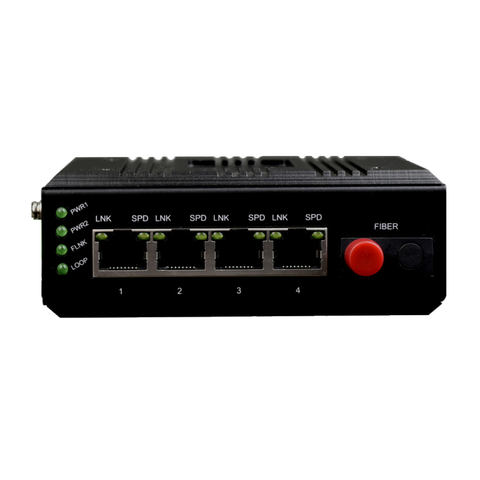

Industrial Grade 4 Port 10/100M Ethernet Fiber Optic Media Converter With LFP
Short Description:
| Product model | FCM-F4-M |
| Product Function Description | 1 channel 100M optical port to 4*10/100M Ethernet copper port, sharing 100M bandwidth, and has the function of automatic power offand restart of the whole machine when the transceiver crashes; loop automatic detection and isolation function, LFP function,industrial rail type. |
| Service port description | 1channel 1*9 or SFP 100M optical port, 4* 100M Ethernet copper ports |
| Power supply | Redundant dual power input DC9-70V, power consumption <5WOverload protection: support; reverse polarity protection: support; redudancy protection: supportAccess terminal: 4-core 5.08mm pitch plug-in terminal |
| Product Size | Shell: IP40 protection grade, aluminum alloy materialDimensions: 110mm(L) x 86mm(W) x 40.5mm(H)Installation method: rail installation, wall-mounted installation |
| Weight | 0.495Kg / PCS |
